Architecting an Highly Available and Scalable WordPress Site in AWS
- 1. Architecting an HighlyAvailable and Scalable WordPress Site in AWS Harish11g.aws@gmail.com https://harish11g.blogspot.com

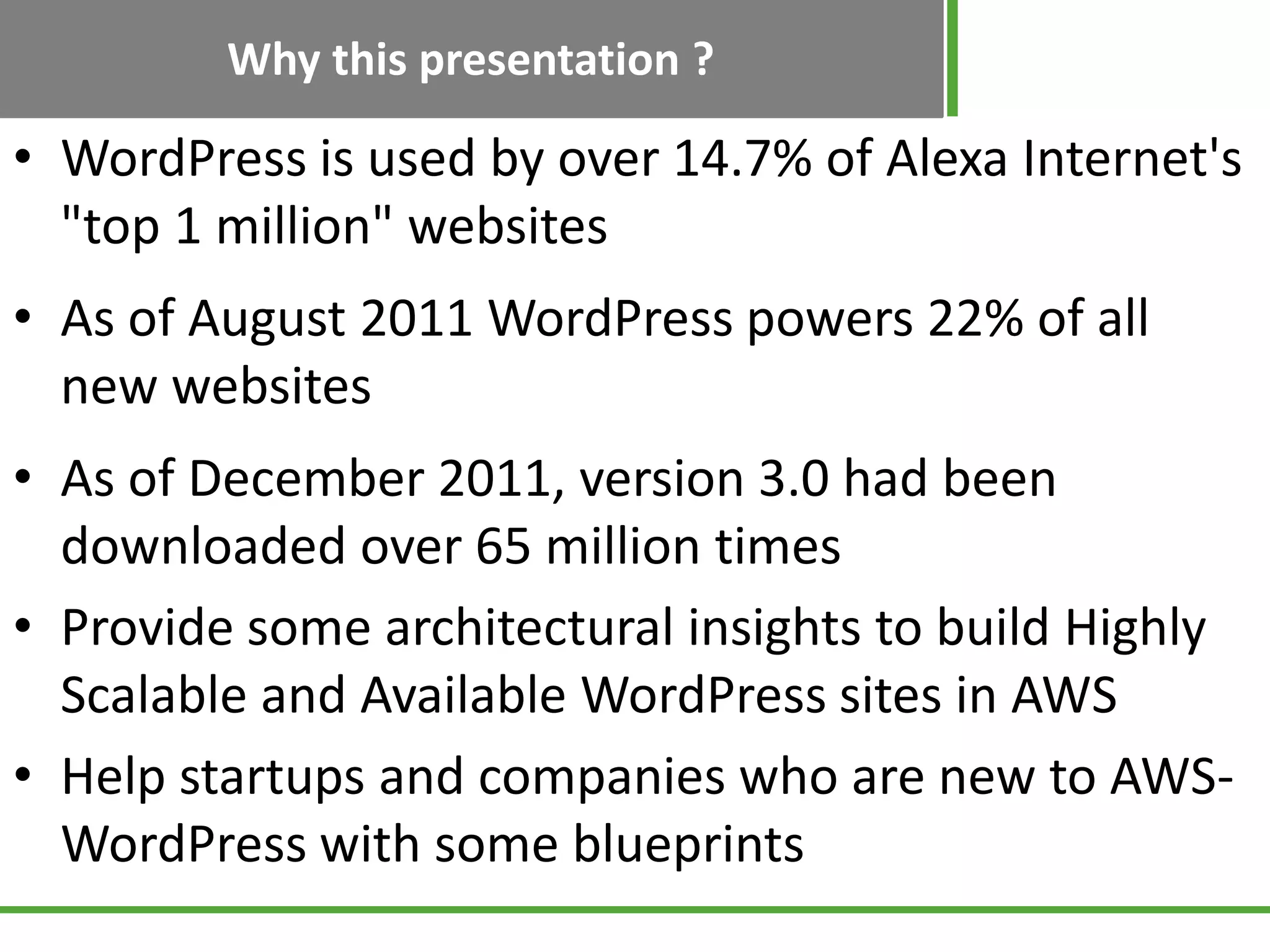

- 2. Why this presentation? • WordPress is used by over 14.7% of Alexa Internet's "top 1 million" websites • As of August 2011 WordPress powers 22% of all new websites • As of December 2011, version 3.0 had been downloaded over 65 million times • Provide some architectural insights to build Highly Scalable and Available WordPress sites in AWS • Help startups and companies who are new to AWS- WordPress with some blueprints

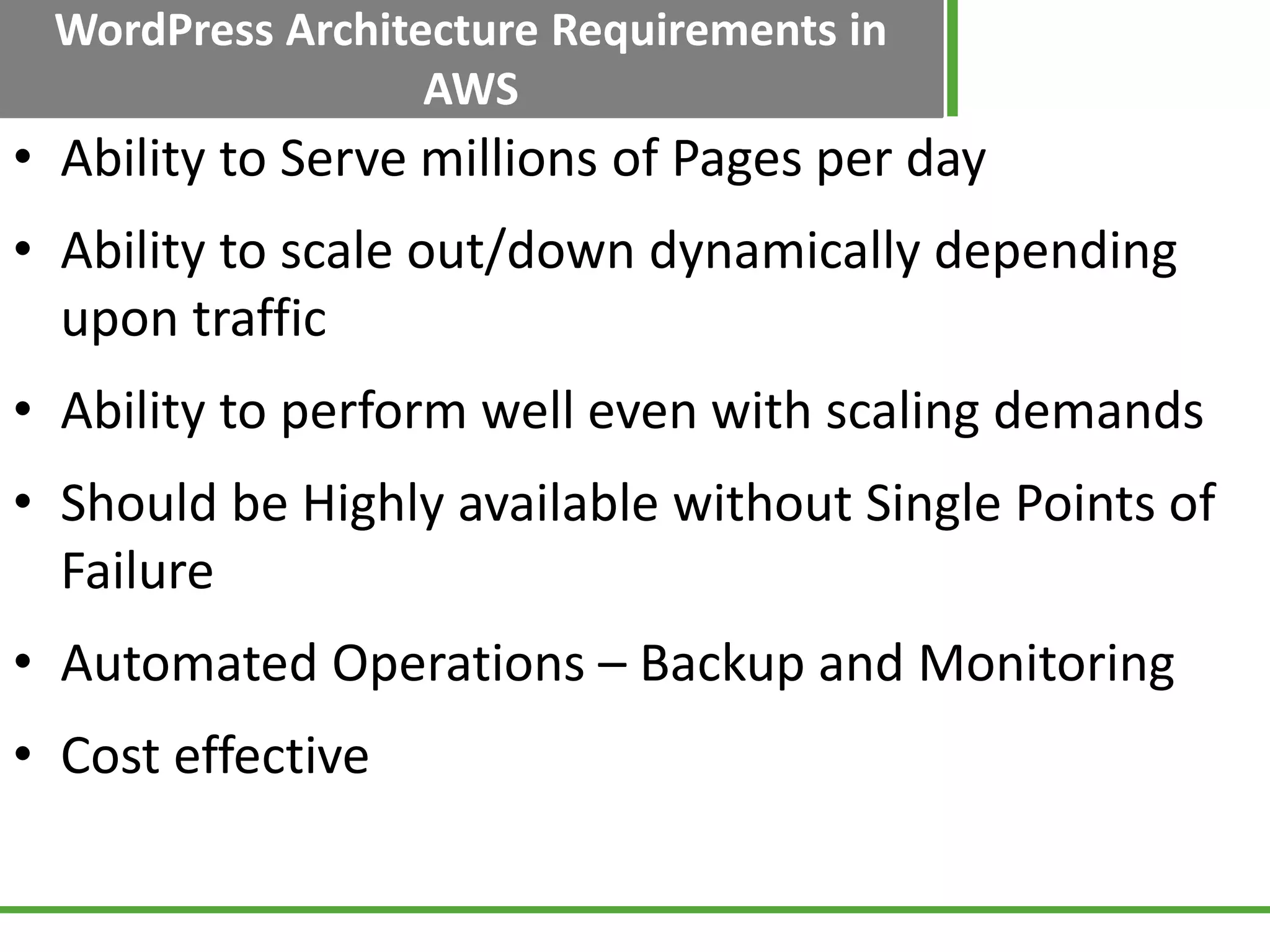

- 3. WordPress Architecture Requirementsin AWS • Ability to Serve millions of Pages per day • Ability to scale out/down dynamically depending upon traffic • Ability to perform well even with scaling demands • Should be Highly available without Single Points of Failure • Automated Operations – Backup and Monitoring • Cost effective

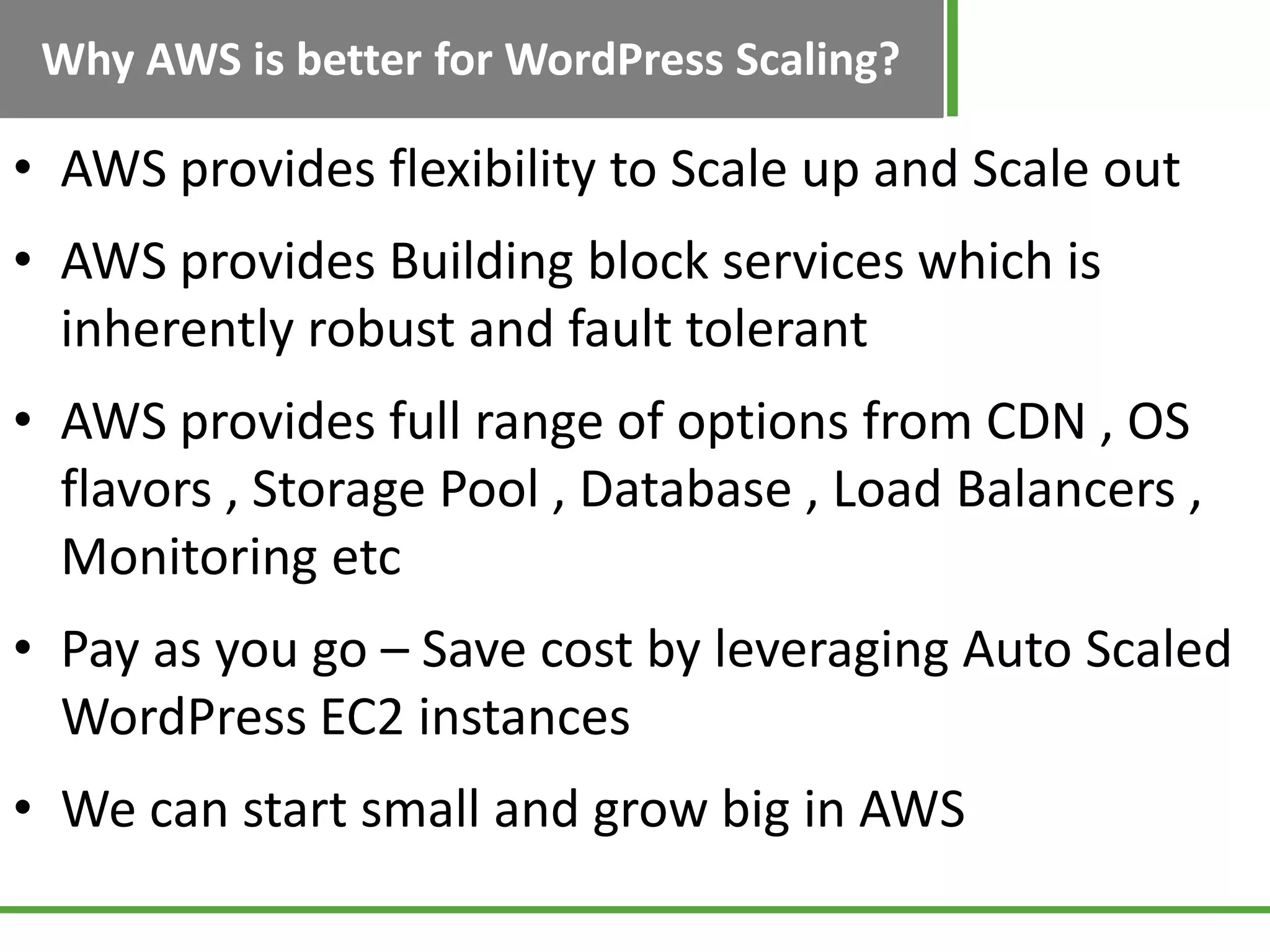

- 4. Why AWS isbetter for WordPress Scaling? • AWS provides flexibility to Scale up and Scale out • AWS provides Building block services which is inherently robust and fault tolerant • AWS provides full range of options from CDN , OS flavors , Storage Pool , Database , Load Balancers , Monitoring etc • Pay as you go – Save cost by leveraging Auto Scaled WordPress EC2 instances • We can start small and grow big in AWS

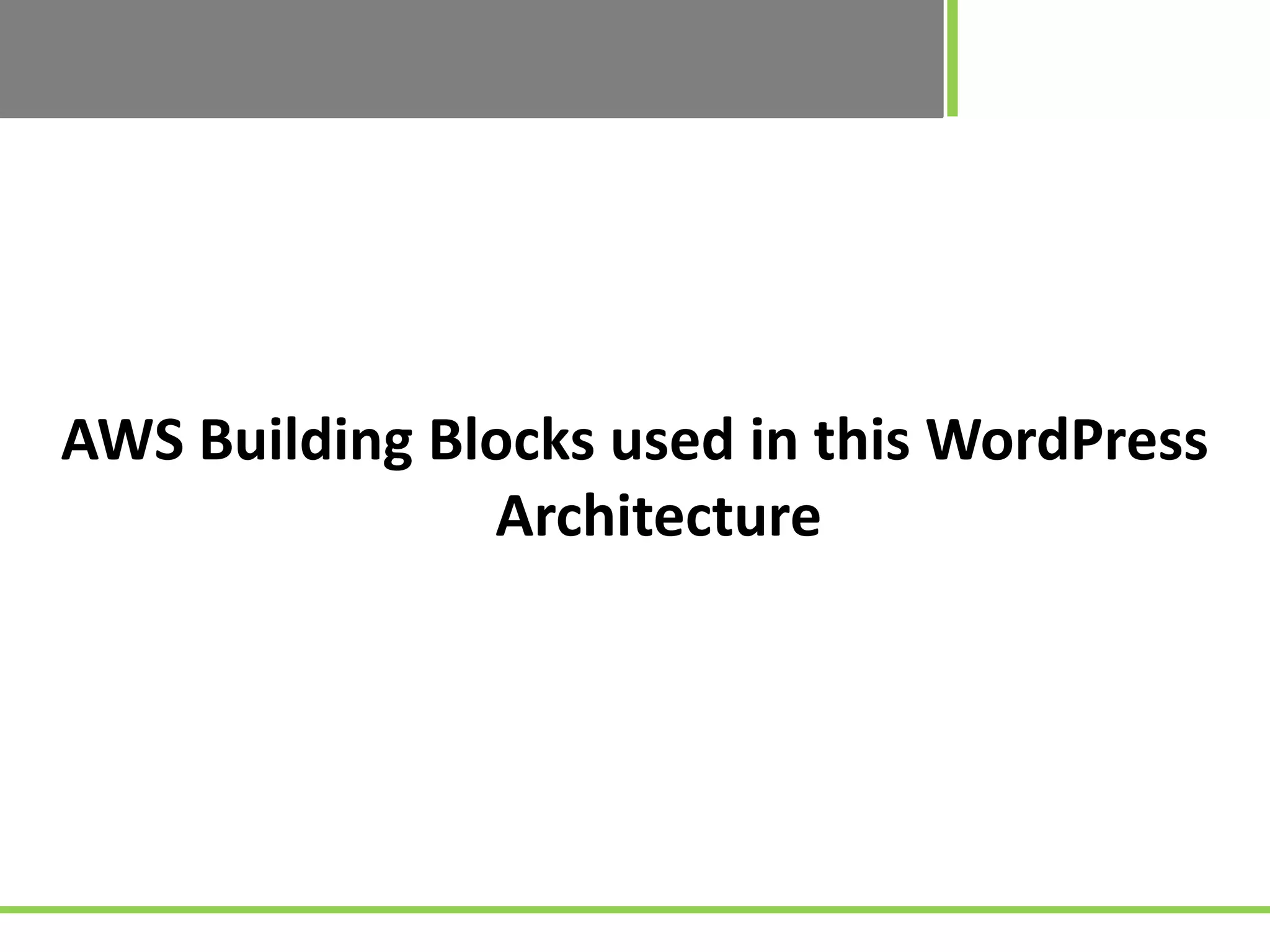

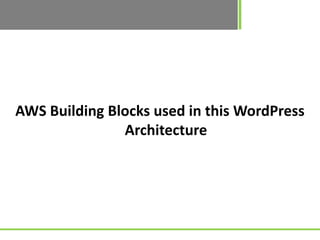

- 5. AWS Building Blocksused in this WordPress Architecture

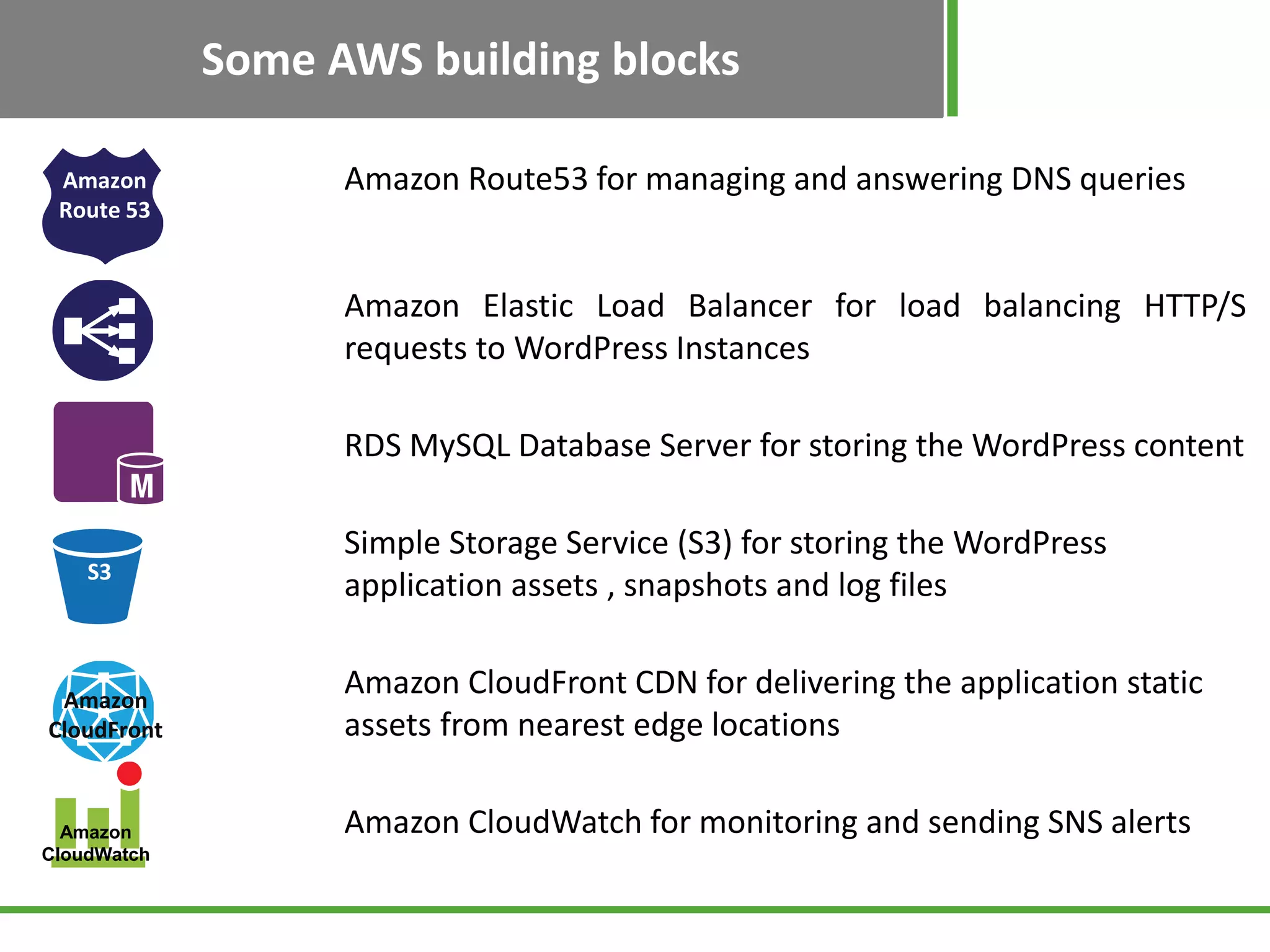

- 6. Some AWS buildingblocks Amazon Amazon Route53 for managing and answering DNS queries Route 53 Amazon Elastic Load Balancer for load balancing HTTP/S requests to WordPress Instances RDS MySQL Database Server for storing the WordPress content Simple Storage Service (S3) for storing the WordPress S3 application assets , snapshots and log files Amazon Amazon CloudFront CDN for delivering the application static CloudFront assets from nearest edge locations Amazon Amazon CloudWatch for monitoring and sending SNS alerts CloudWatch

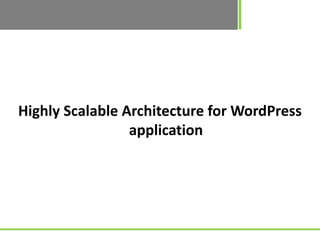

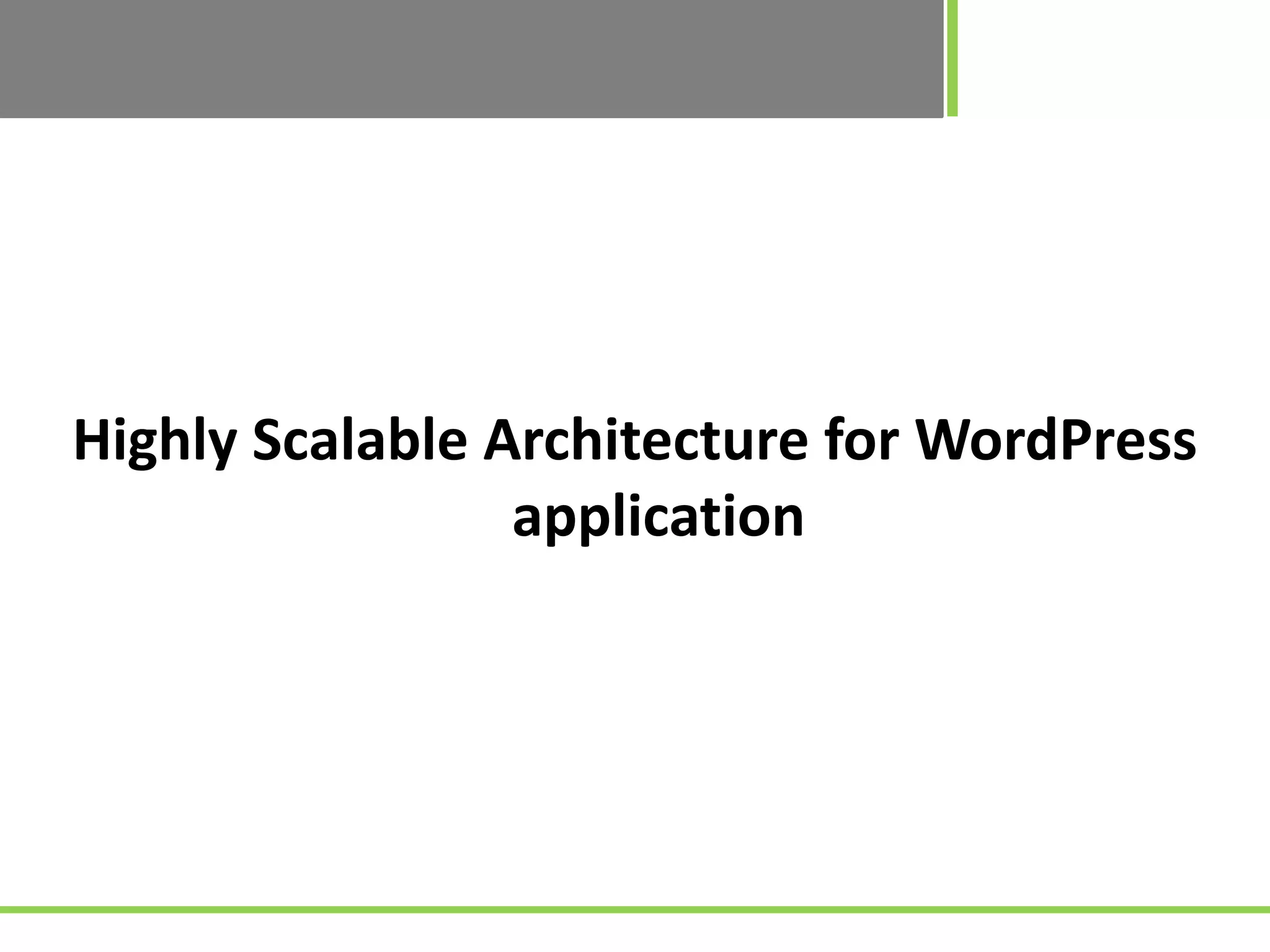

- 7. Highly Scalable Architecturefor WordPress application

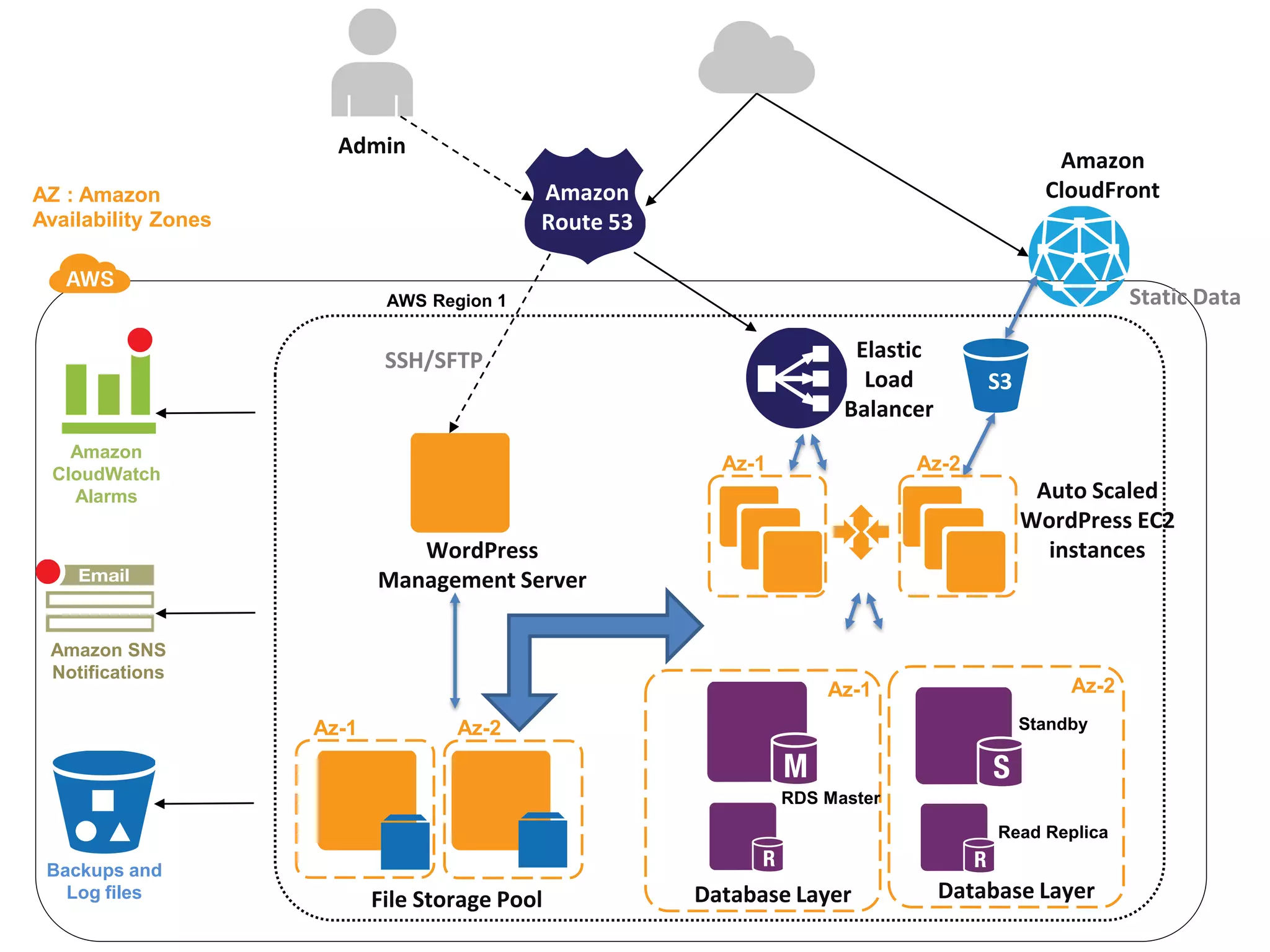

- 8. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

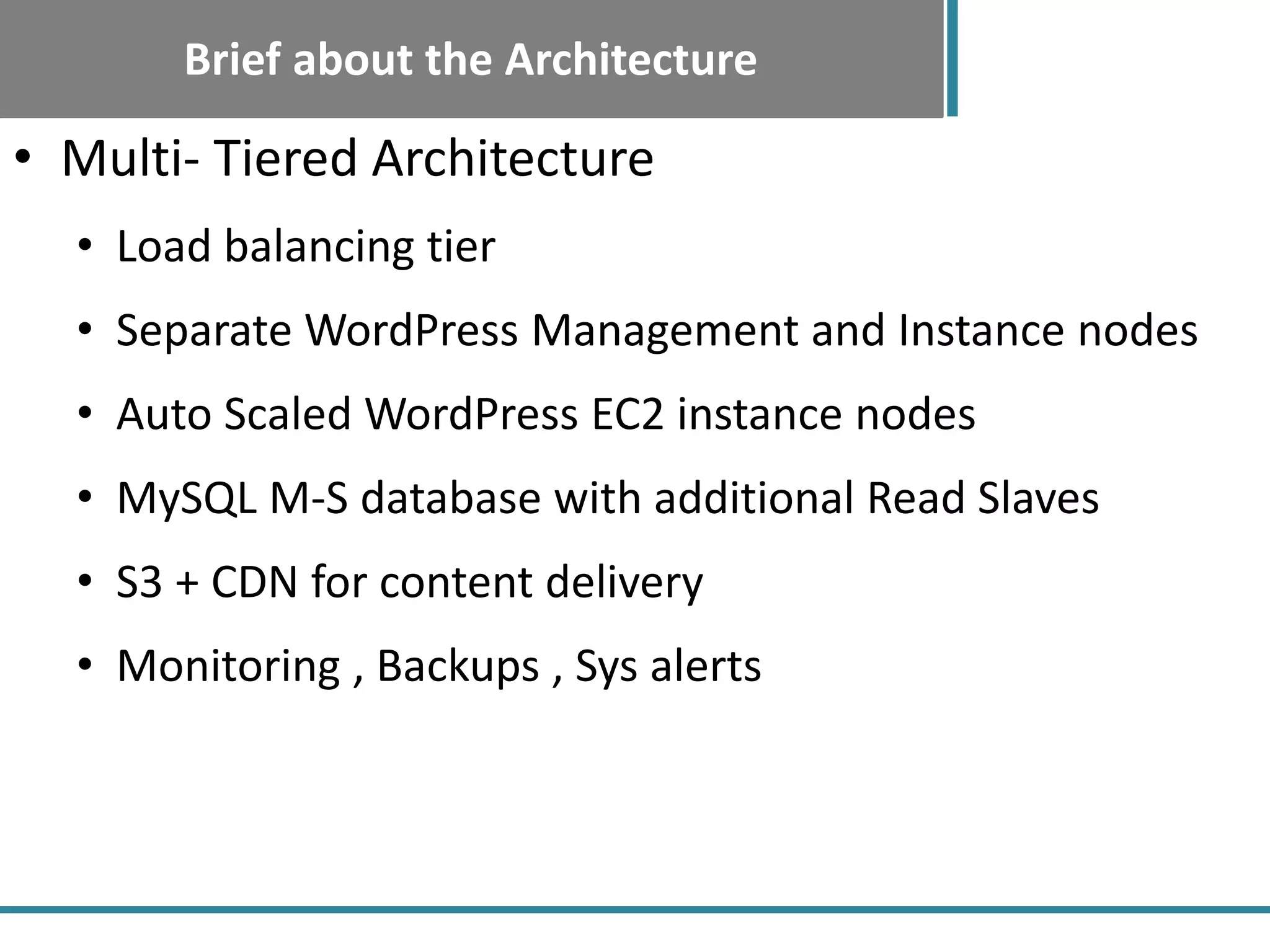

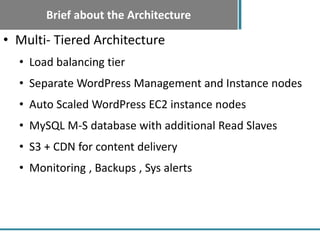

- 9. Brief about theArchitecture • Multi- Tiered Architecture • Load balancing tier • Separate WordPress Management and Instance nodes • Auto Scaled WordPress EC2 instance nodes • MySQL M-S database with additional Read Slaves • S3 + CDN for content delivery • Monitoring , Backups , Sys alerts

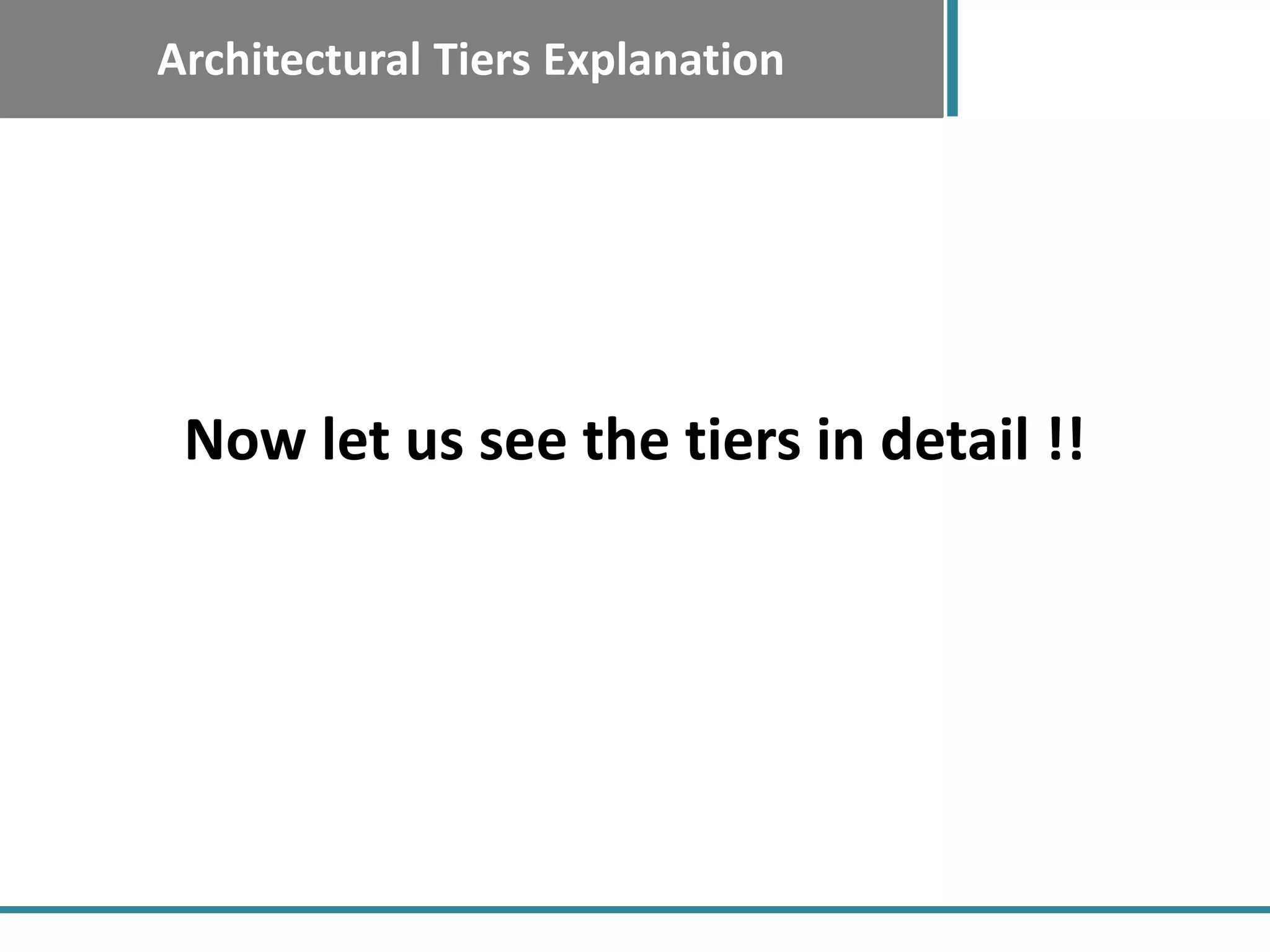

- 10. Architectural Tiers Explanation Now let us see the tiers in detail !!
- 11.

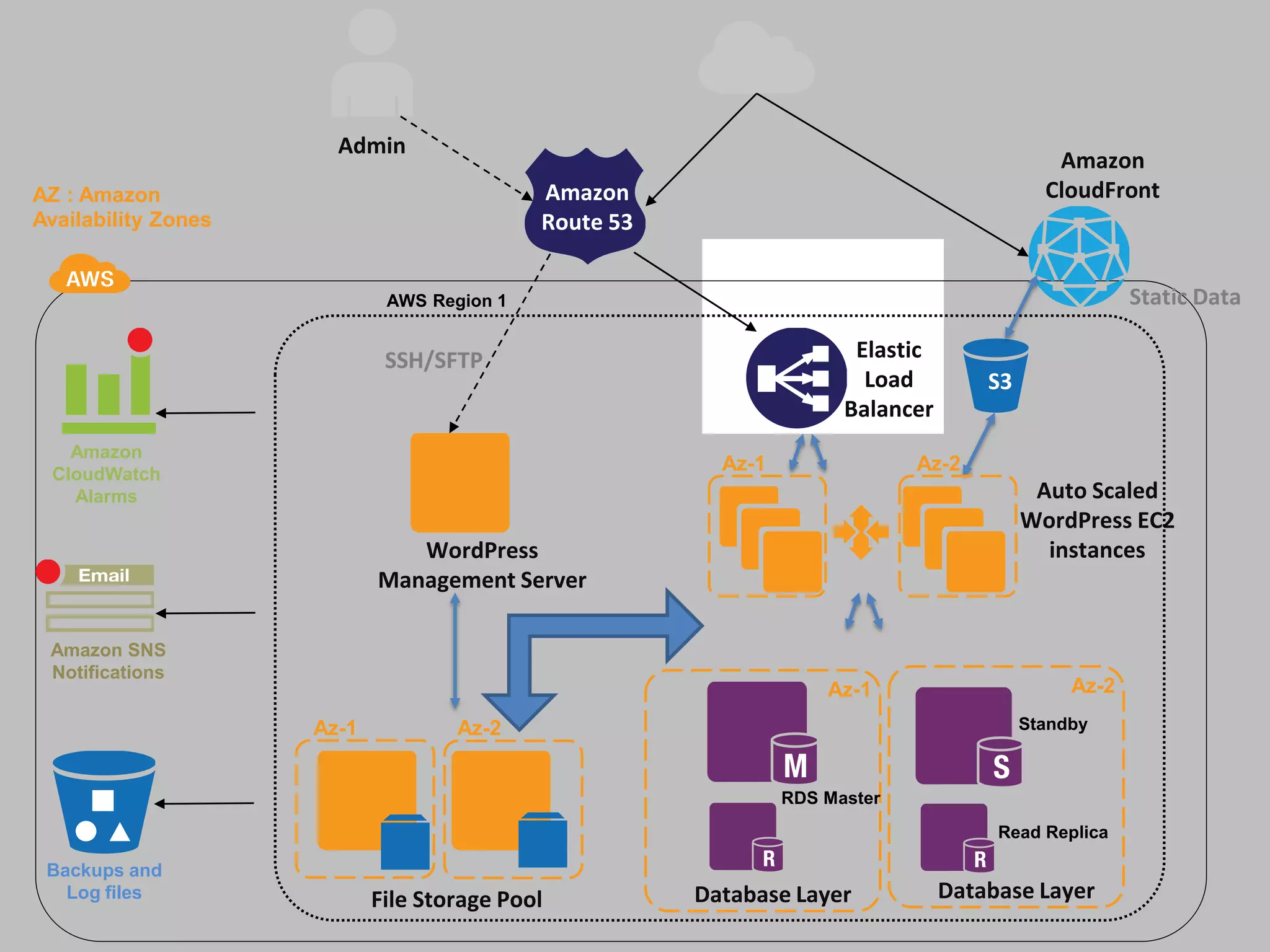

- 12. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

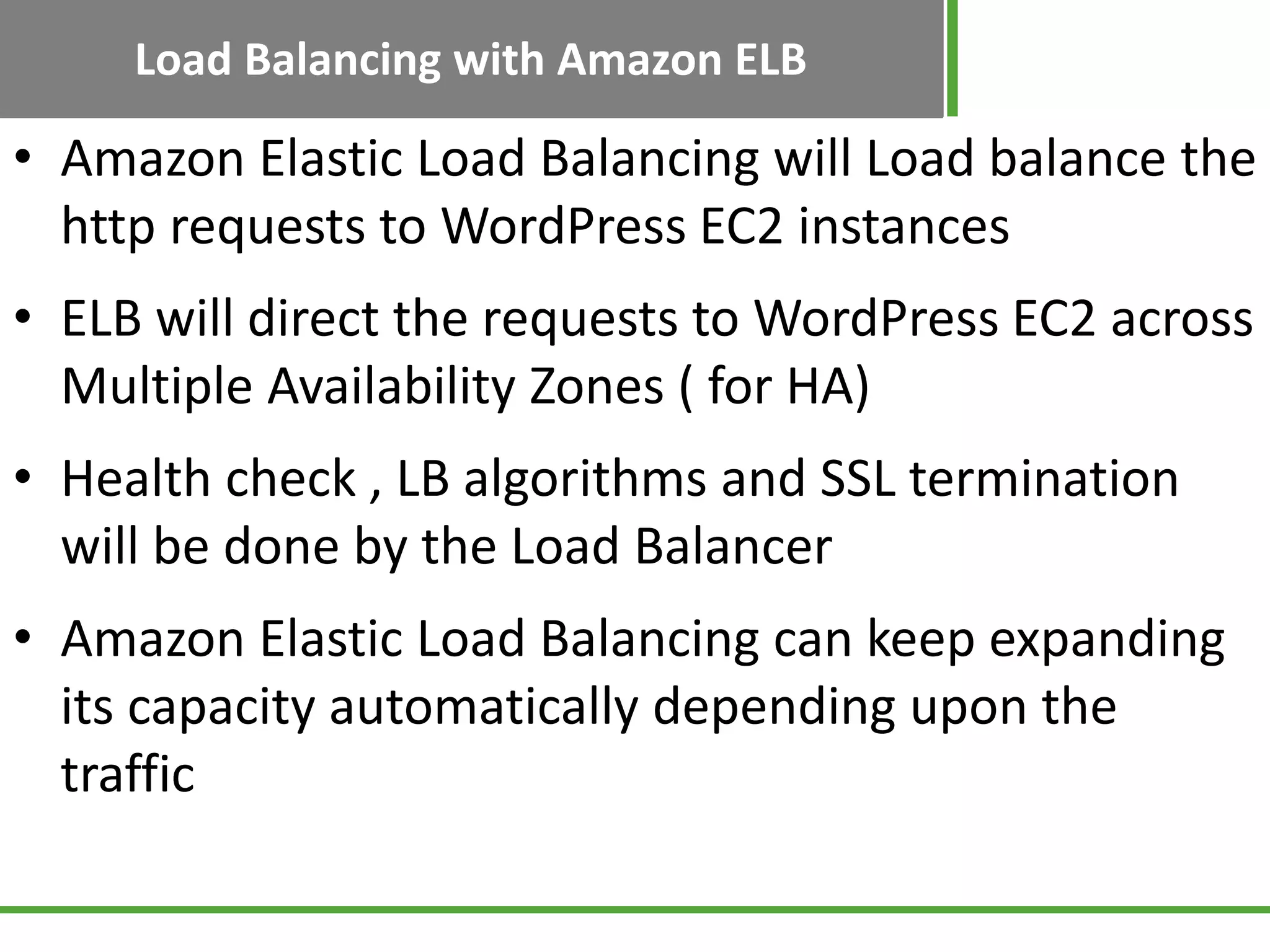

- 13. Load Balancing withAmazon ELB • Amazon Elastic Load Balancing will Load balance the http requests to WordPress EC2 instances • ELB will direct the requests to WordPress EC2 across Multiple Availability Zones ( for HA) • Health check , LB algorithms and SSL termination will be done by the Load Balancer • Amazon Elastic Load Balancing can keep expanding its capacity automatically depending upon the traffic

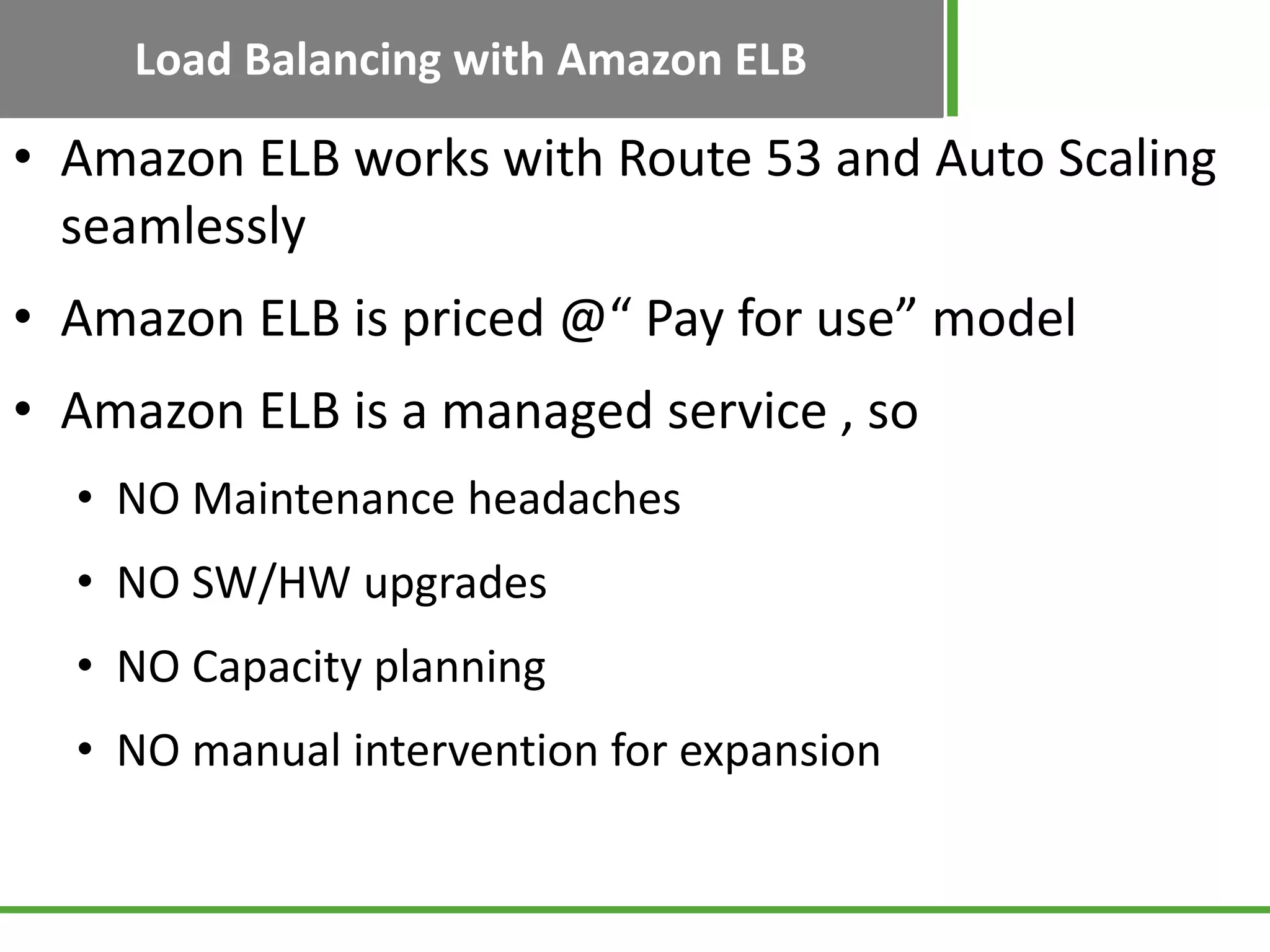

- 14. Load Balancing withAmazon ELB • Amazon ELB works with Route 53 and Auto Scaling seamlessly • Amazon ELB is priced @“ Pay for use” model • Amazon ELB is a managed service , so • NO Maintenance headaches • NO SW/HW upgrades • NO Capacity planning • NO manual intervention for expansion

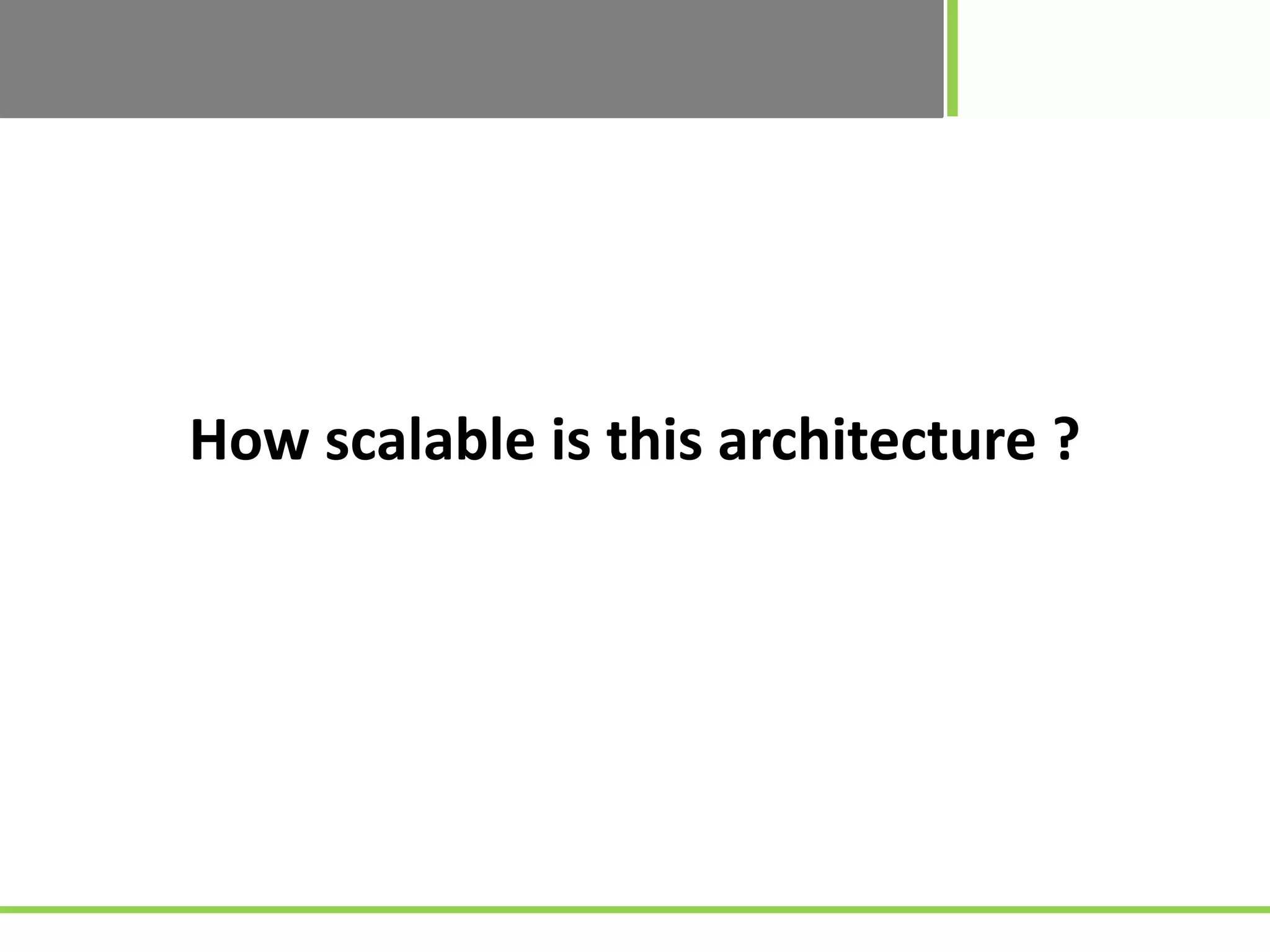

- 15. How scalable isthis architecture ?

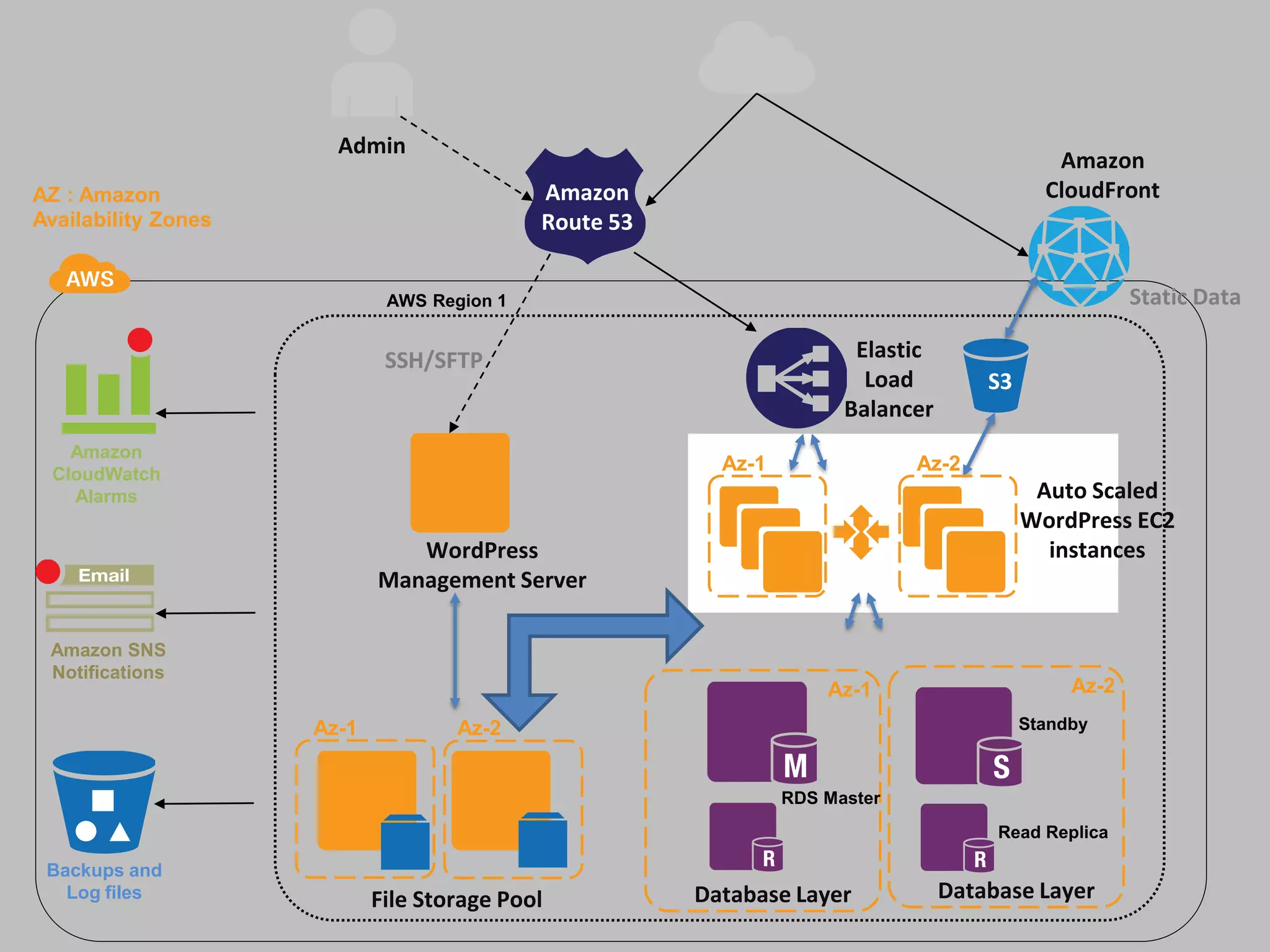

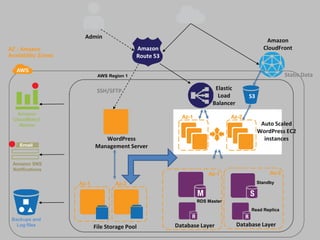

- 16. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer
- 17. Scalability and Elasticity •Scalability and Elasticity is built in most of the layers in this architecture • WordPress EC2 instances can be scaled out and down depending upon the traffic • We can expand the number of WordPress EC2 instances from 1 to 100+ automatically during load peaks • We can reduce the number of WordPress EC2 instances from 100+ to 1 automatically during valleys • Can serve millions of pages with ease • Pay only for the EC2 instance hours used
- 18. Scalability and Elasticity •Read Scalability is built in the Database layer with RDS Read Replicas • New RDS Read Replicas can be added / removed with ease • Tips: • During Campaigns alone we can run more RDS Read Replicas • Not more than max 5 RDS Read replicas are recommended • Keep Read Replica’s and RDS Master same EC2 size for better performance

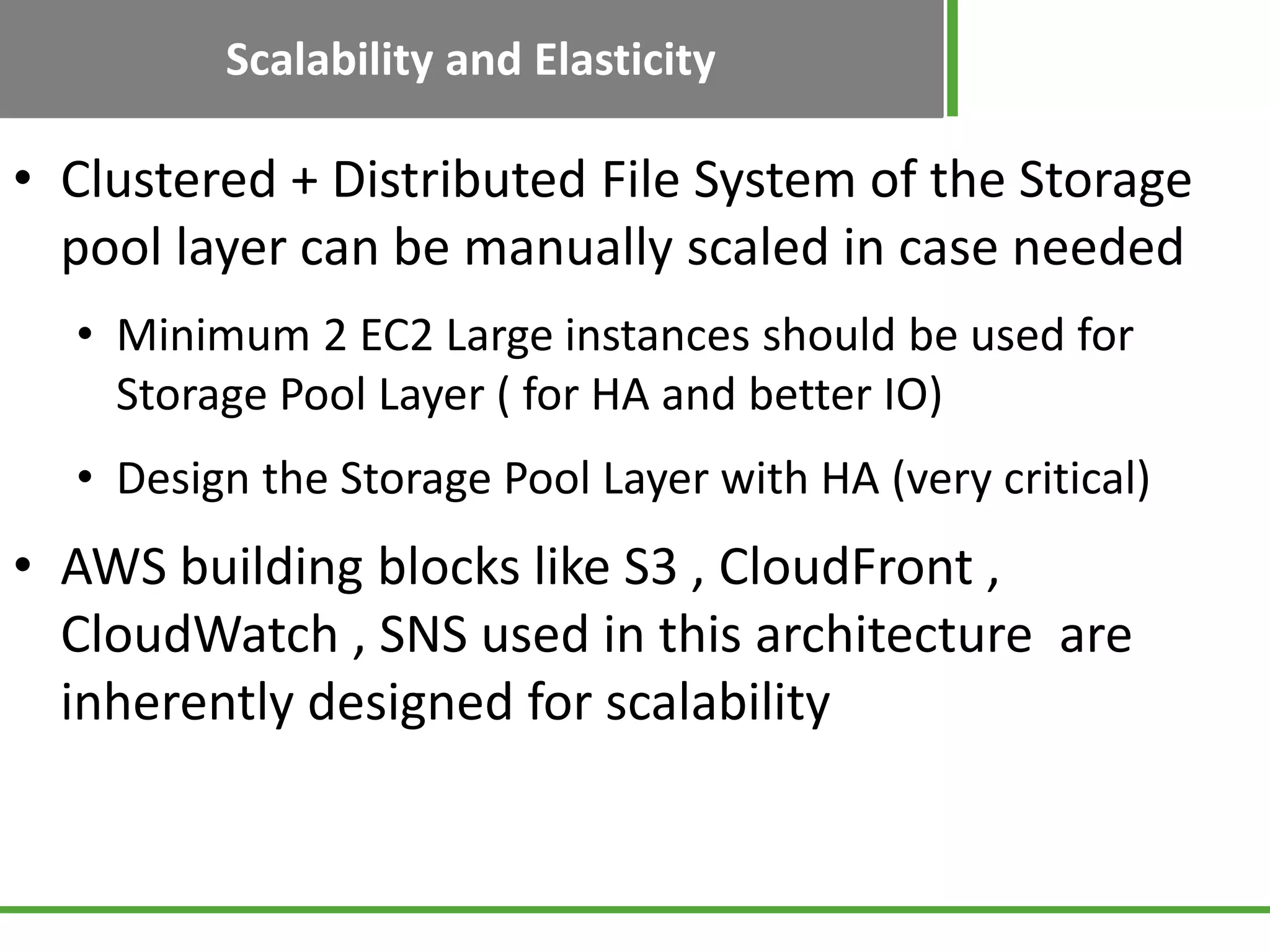

- 19. Scalability and Elasticity •Clustered + Distributed File System of the Storage pool layer can be manually scaled in case needed • Minimum 2 EC2 Large instances should be used for Storage Pool Layer ( for HA and better IO) • Design the Storage Pool Layer with HA (very critical) • AWS building blocks like S3 , CloudFront , CloudWatch , SNS used in this architecture are inherently designed for scalability

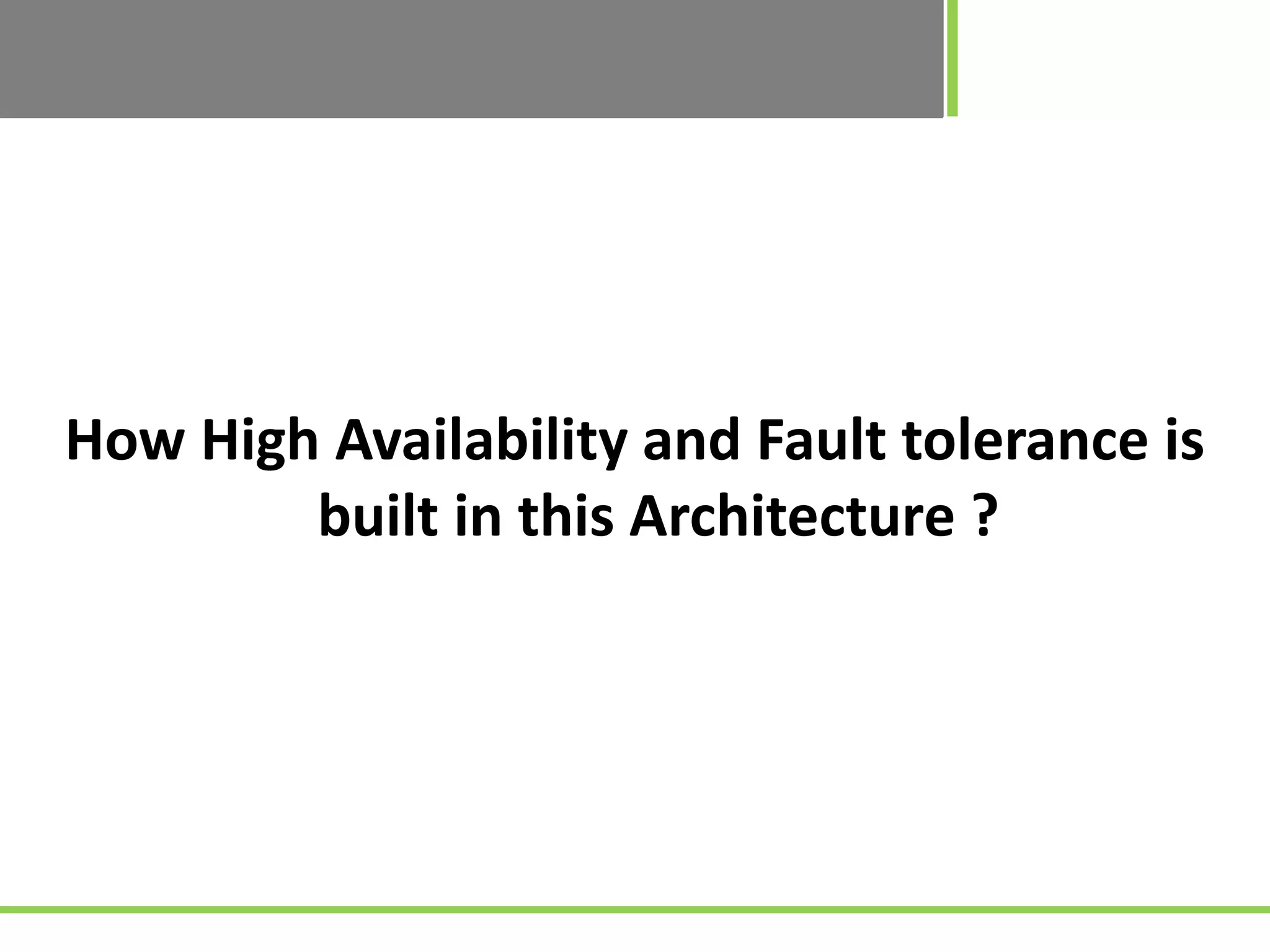

- 20. How High Availabilityand Fault tolerance is built in this Architecture ?

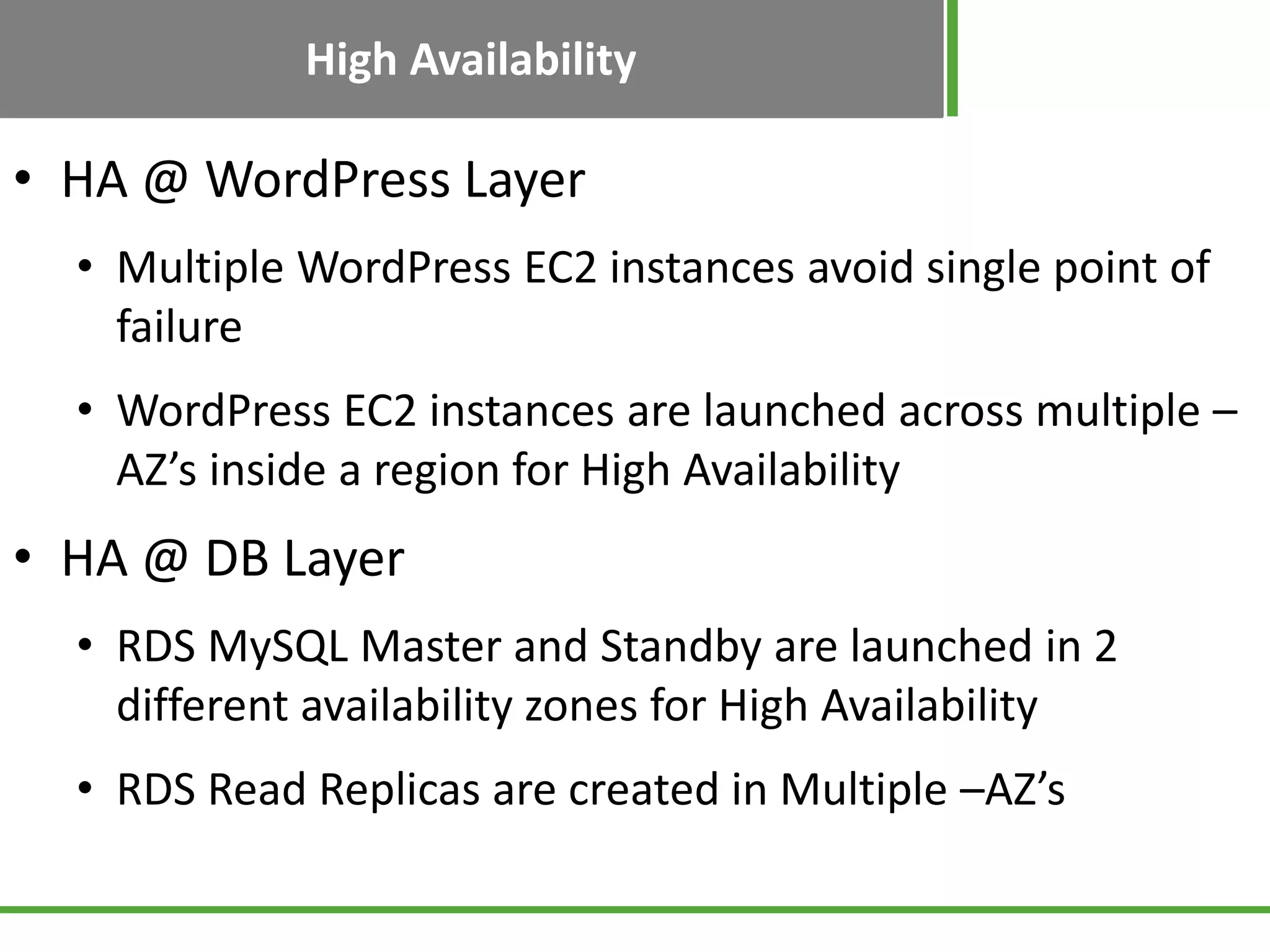

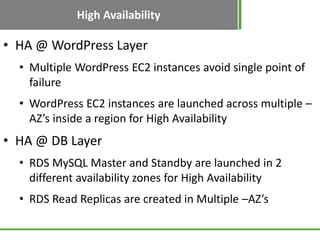

- 21. High Availability • HA@ WordPress Layer • Multiple WordPress EC2 instances avoid single point of failure • WordPress EC2 instances are launched across multiple – AZ’s inside a region for High Availability • HA @ DB Layer • RDS MySQL Master and Standby are launched in 2 different availability zones for High Availability • RDS Read Replicas are created in Multiple –AZ’s

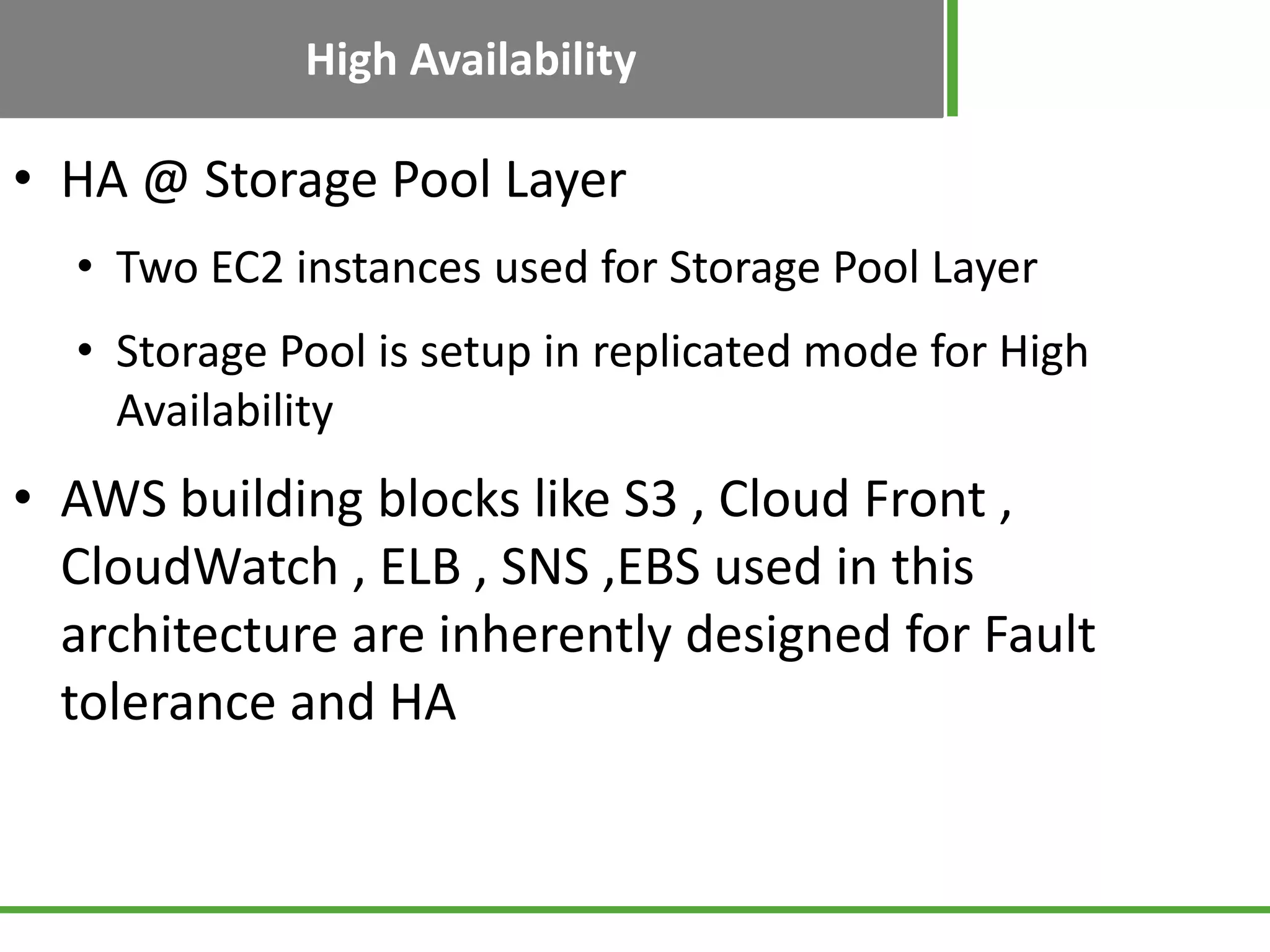

- 22. High Availability • HA@ Storage Pool Layer • Two EC2 instances used for Storage Pool Layer • Storage Pool is setup in replicated mode for High Availability • AWS building blocks like S3 , Cloud Front , CloudWatch , ELB , SNS ,EBS used in this architecture are inherently designed for Fault tolerance and HA

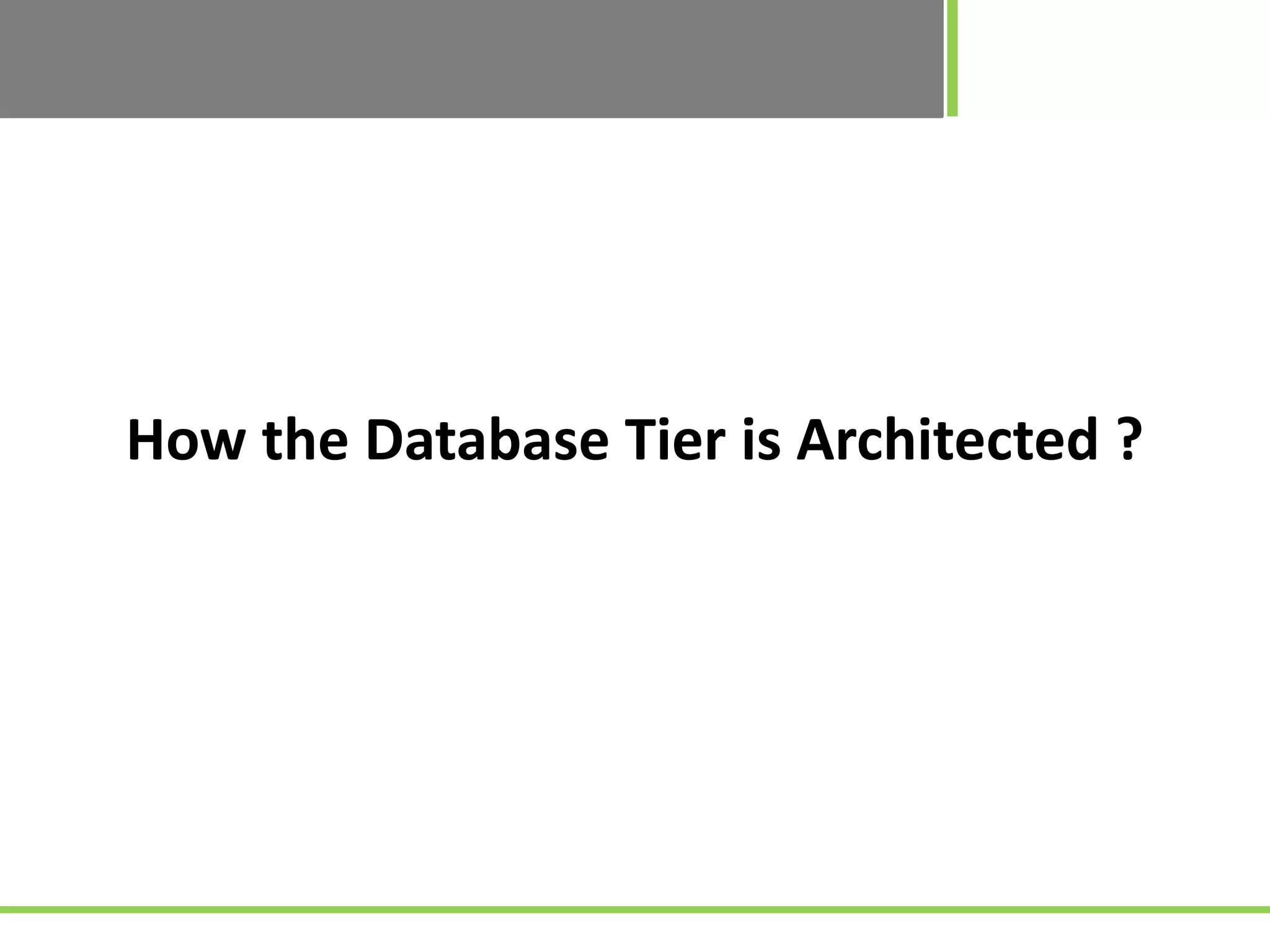

- 23. How the DatabaseTier is Architected ?

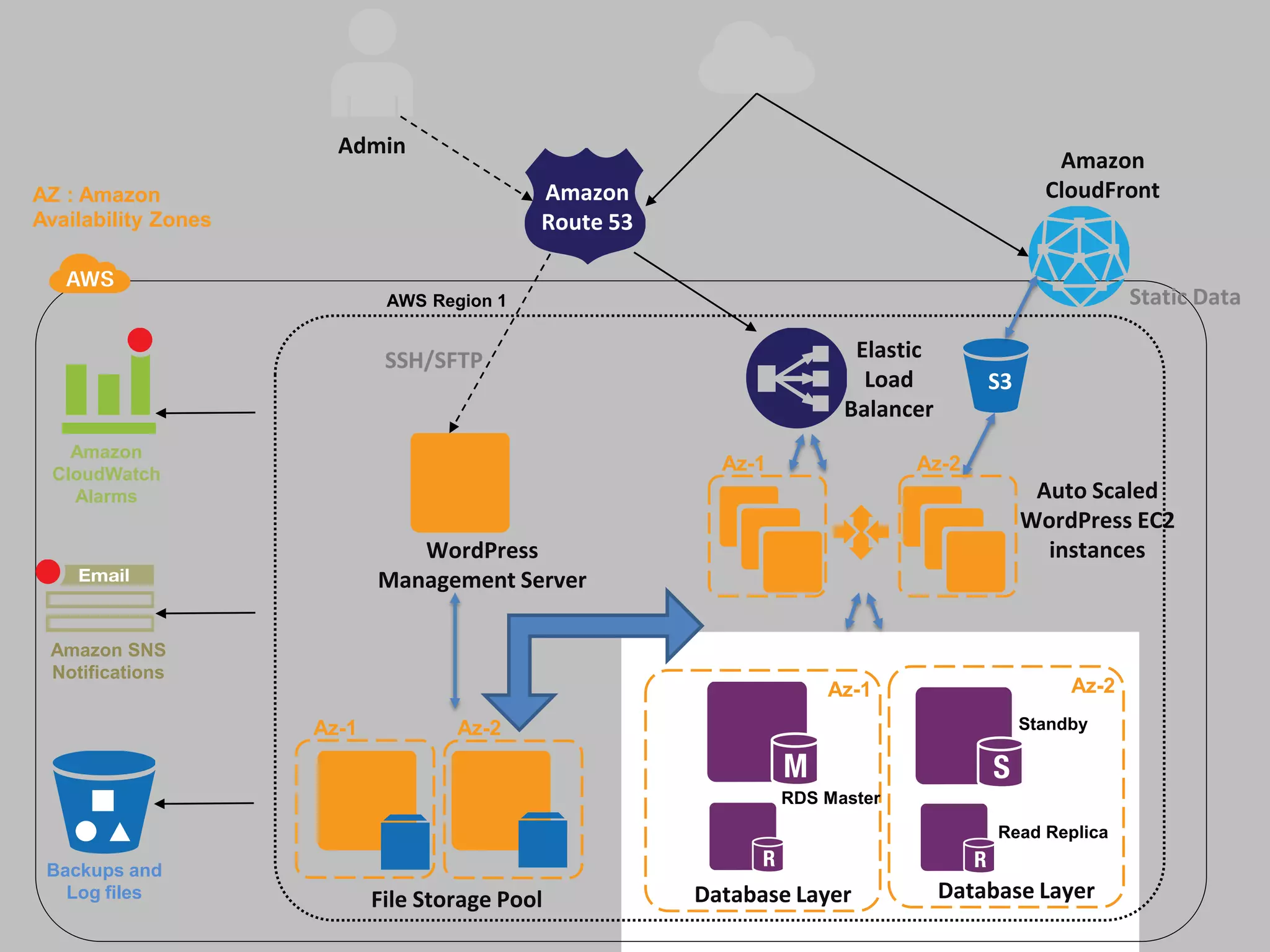

- 24. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

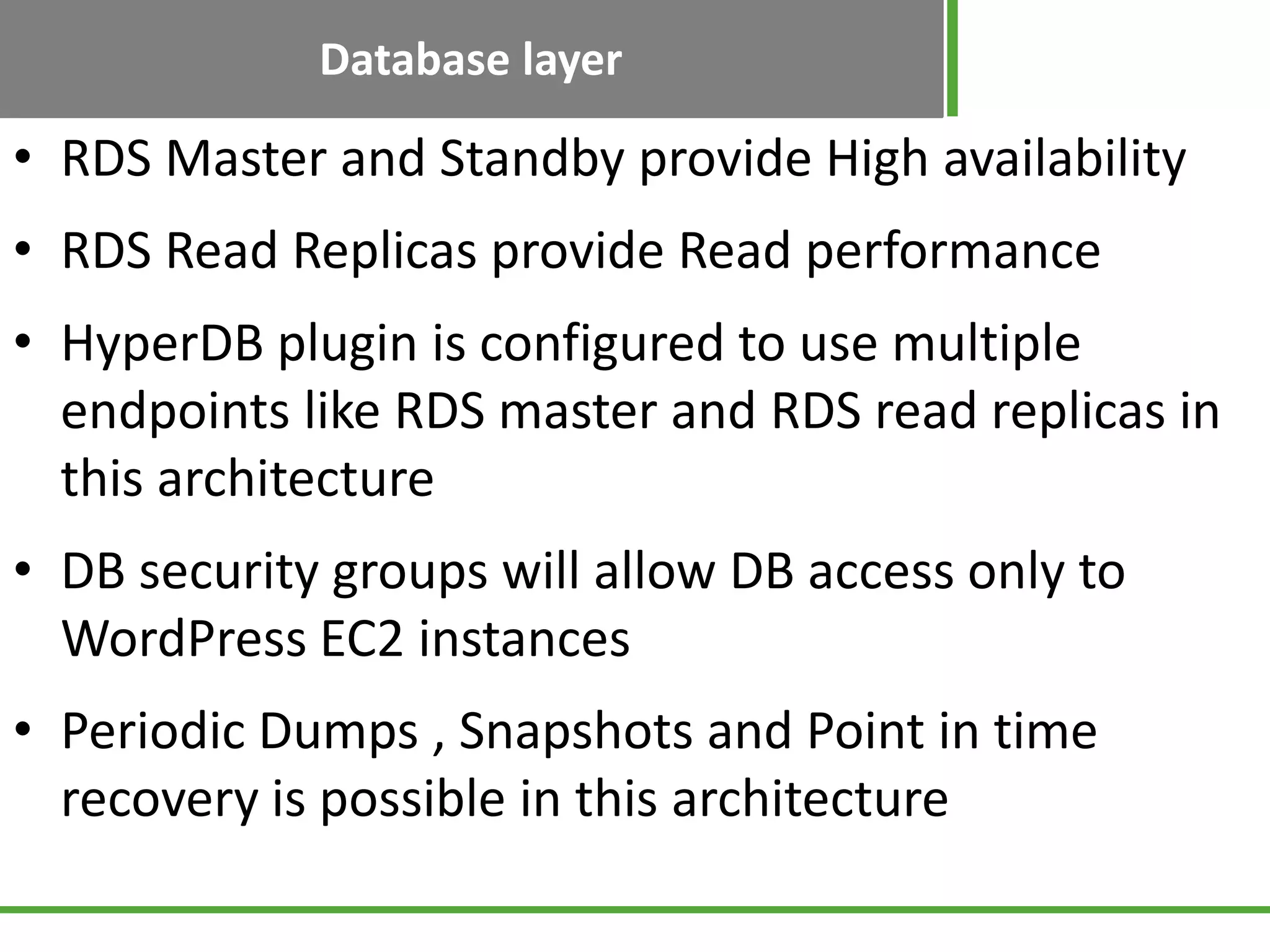

- 25. Database layer • RDSMaster and Standby provide High availability • RDS Read Replicas provide Read performance • HyperDB plugin is configured to use multiple endpoints like RDS master and RDS read replicas in this architecture • DB security groups will allow DB access only to WordPress EC2 instances • Periodic Dumps , Snapshots and Point in time recovery is possible in this architecture

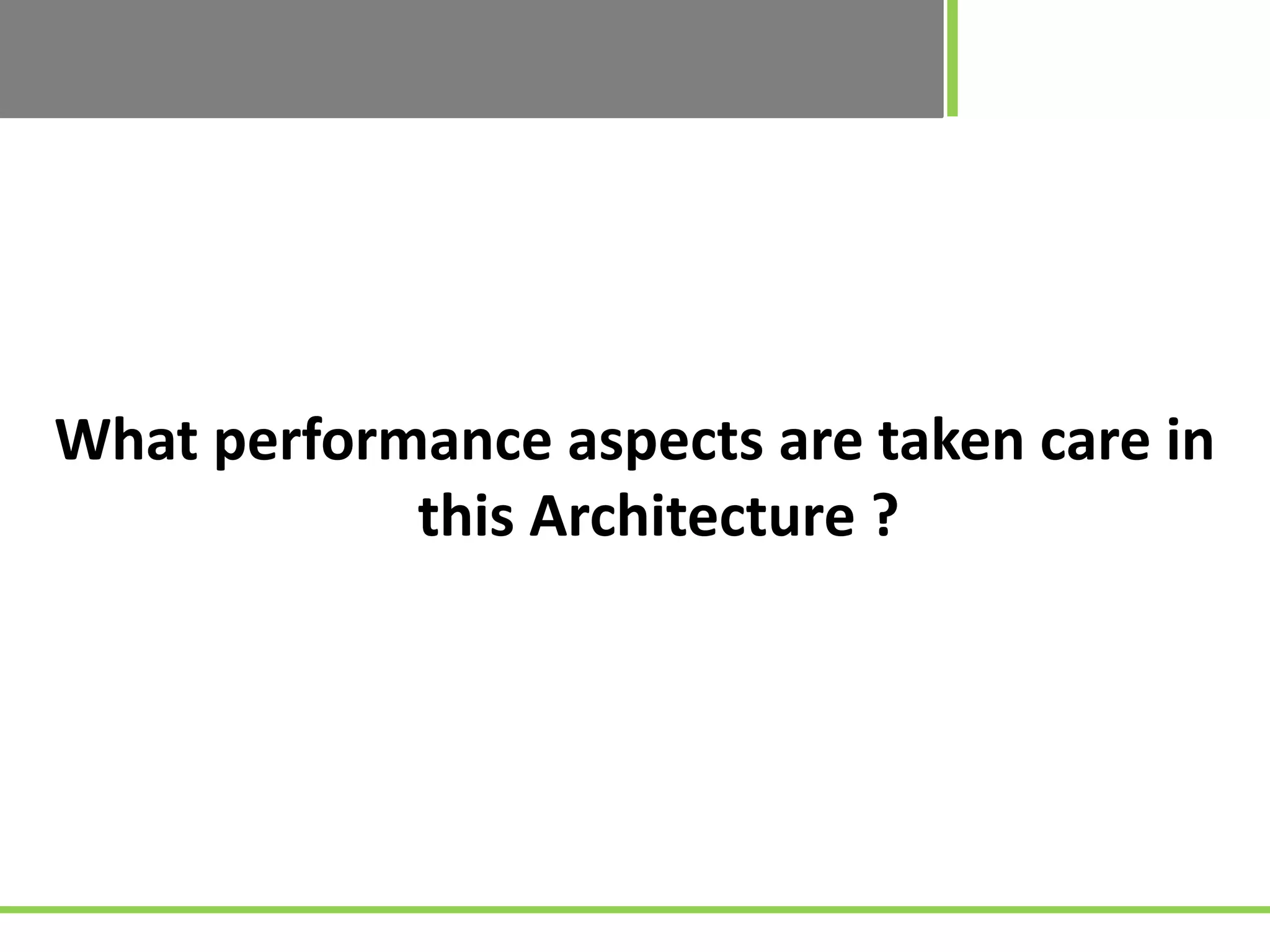

- 26. What performance aspectsare taken care in this Architecture ?

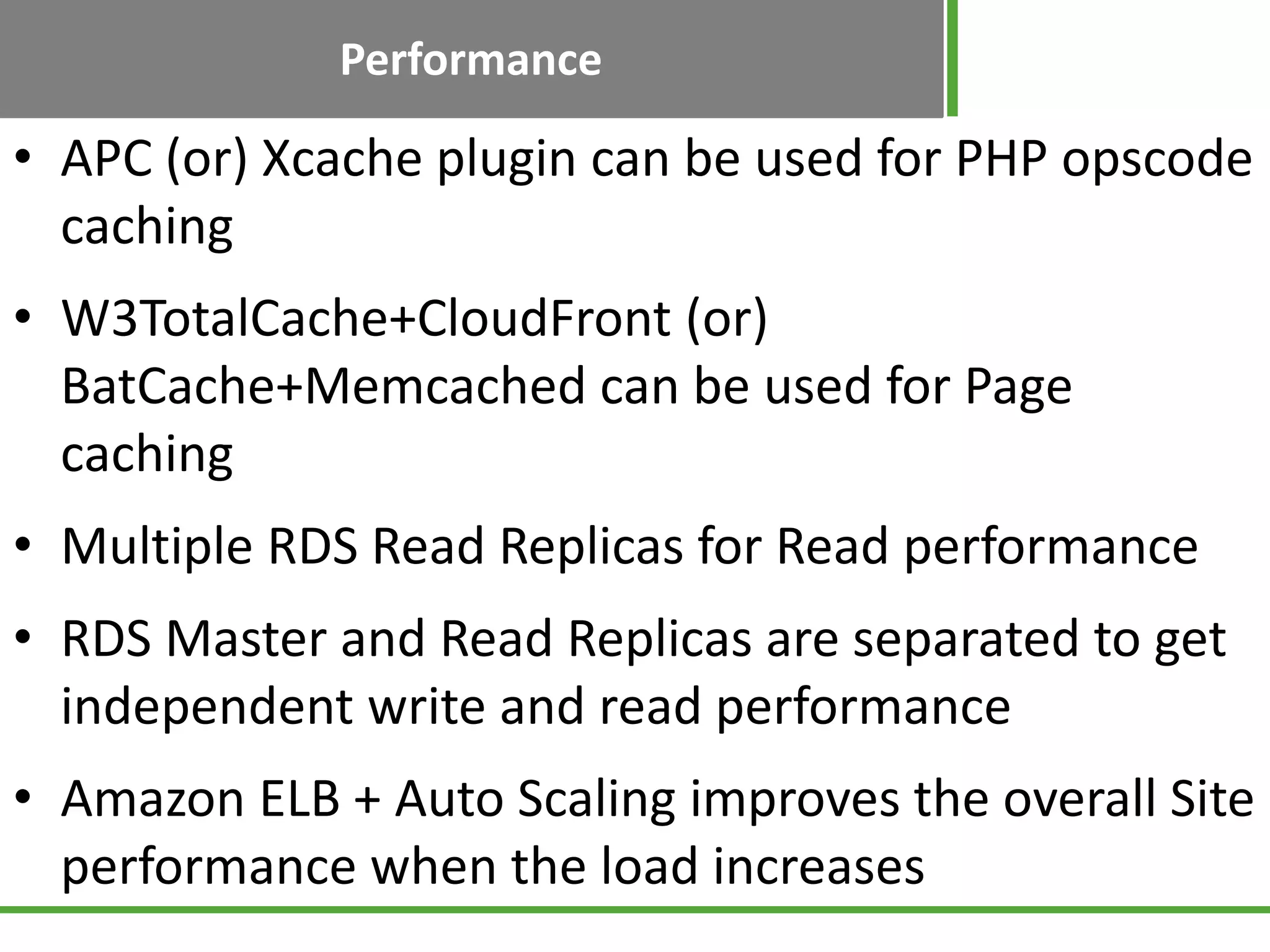

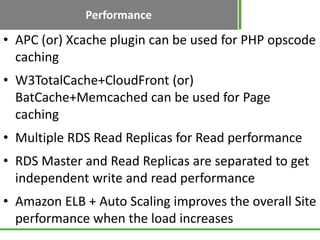

- 27. Performance • APC (or)Xcache plugin can be used for PHP opscode caching • W3TotalCache+CloudFront (or) BatCache+Memcached can be used for Page caching • Multiple RDS Read Replicas for Read performance • RDS Master and Read Replicas are separated to get independent write and read performance • Amazon ELB + Auto Scaling improves the overall Site performance when the load increases

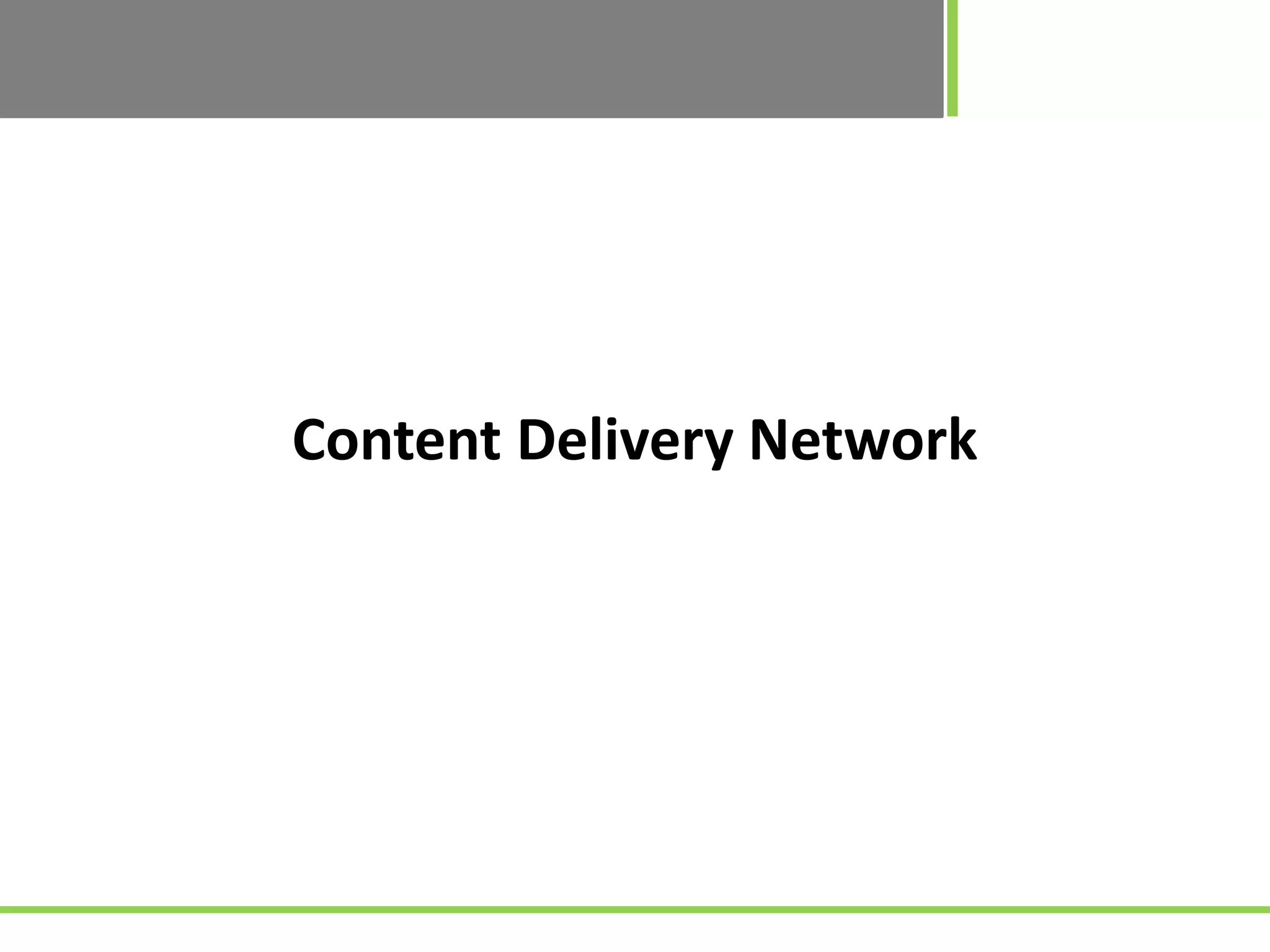

- 28.

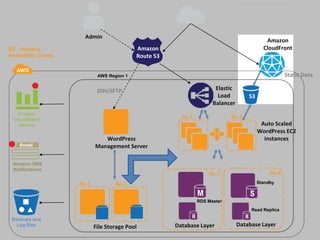

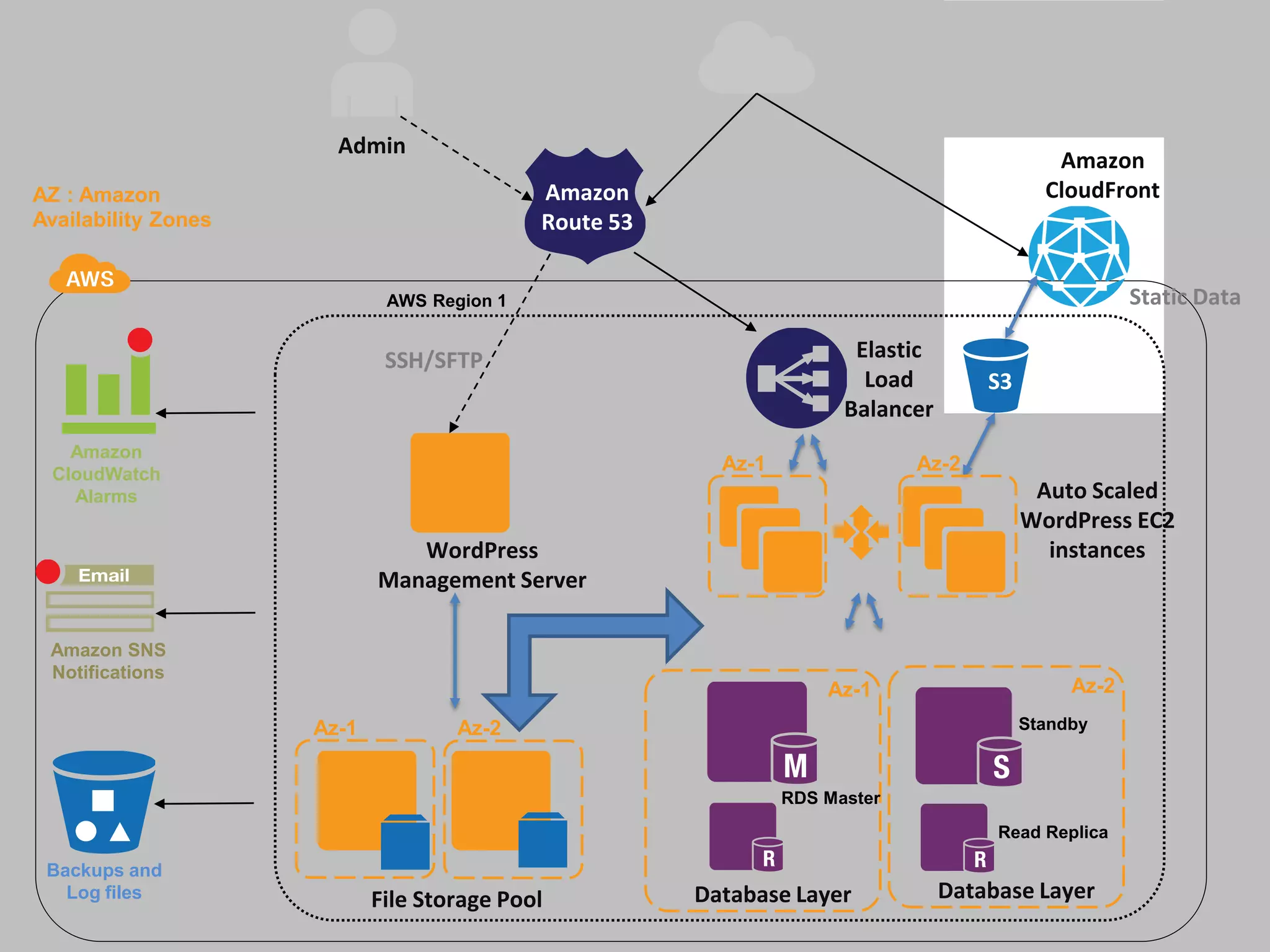

- 29. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

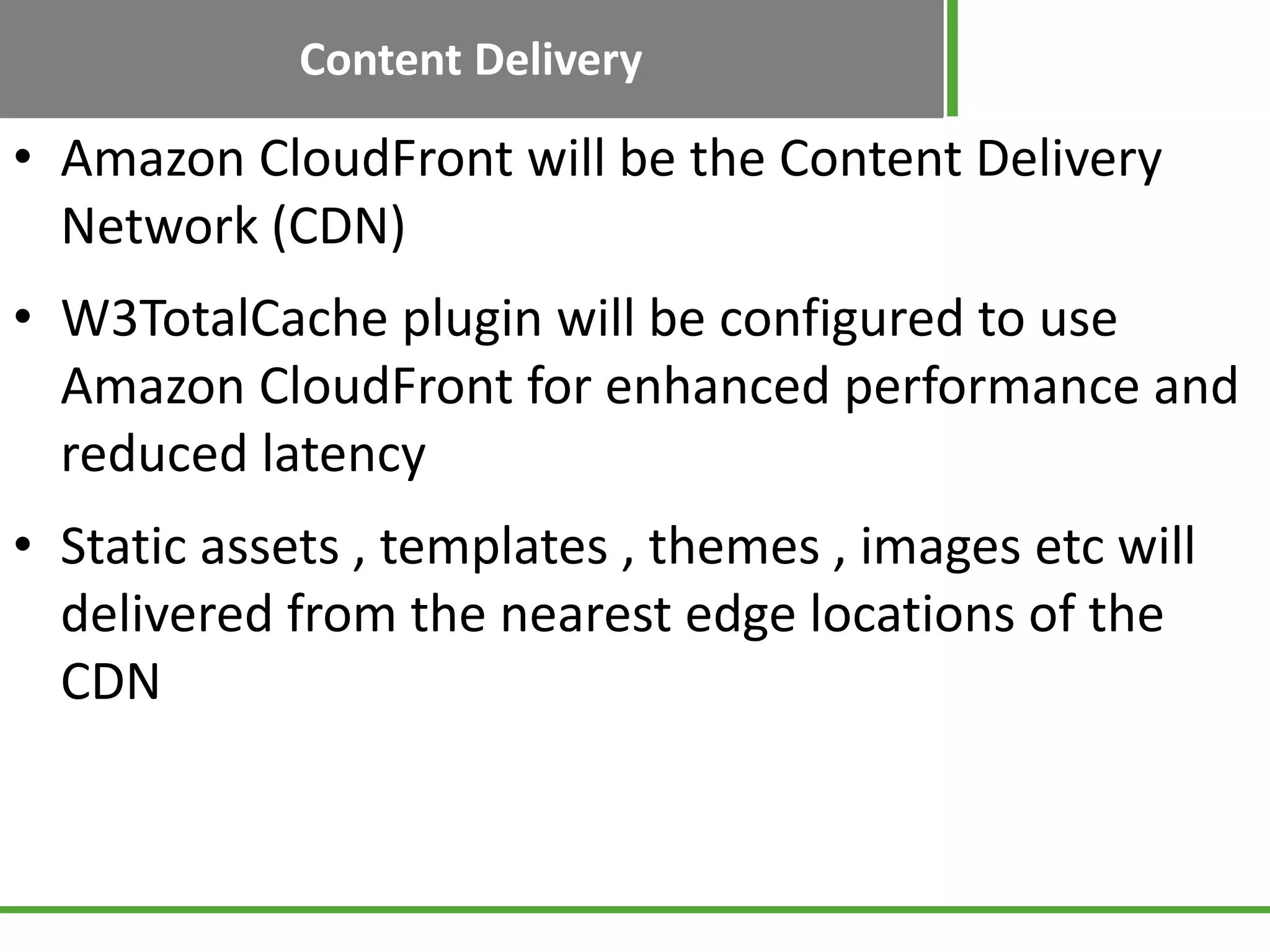

- 30. Content Delivery • AmazonCloudFront will be the Content Delivery Network (CDN) • W3TotalCache plugin will be configured to use Amazon CloudFront for enhanced performance and reduced latency • Static assets , templates , themes , images etc will delivered from the nearest edge locations of the CDN

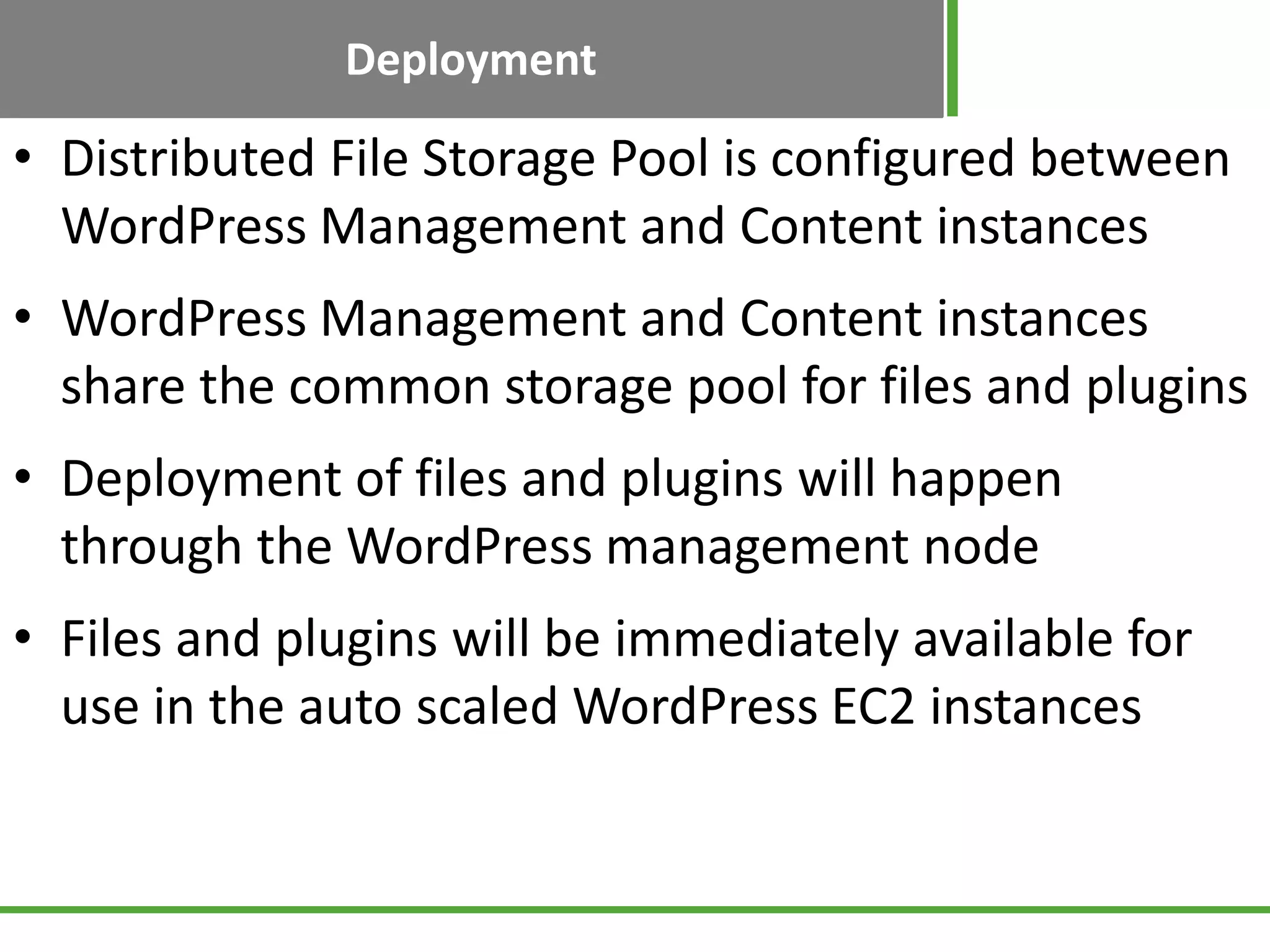

- 31. Deployment • Distributed FileStorage Pool is configured between WordPress Management and Content instances • WordPress Management and Content instances share the common storage pool for files and plugins • Deployment of files and plugins will happen through the WordPress management node • Files and plugins will be immediately available for use in the auto scaled WordPress EC2 instances
- 32.

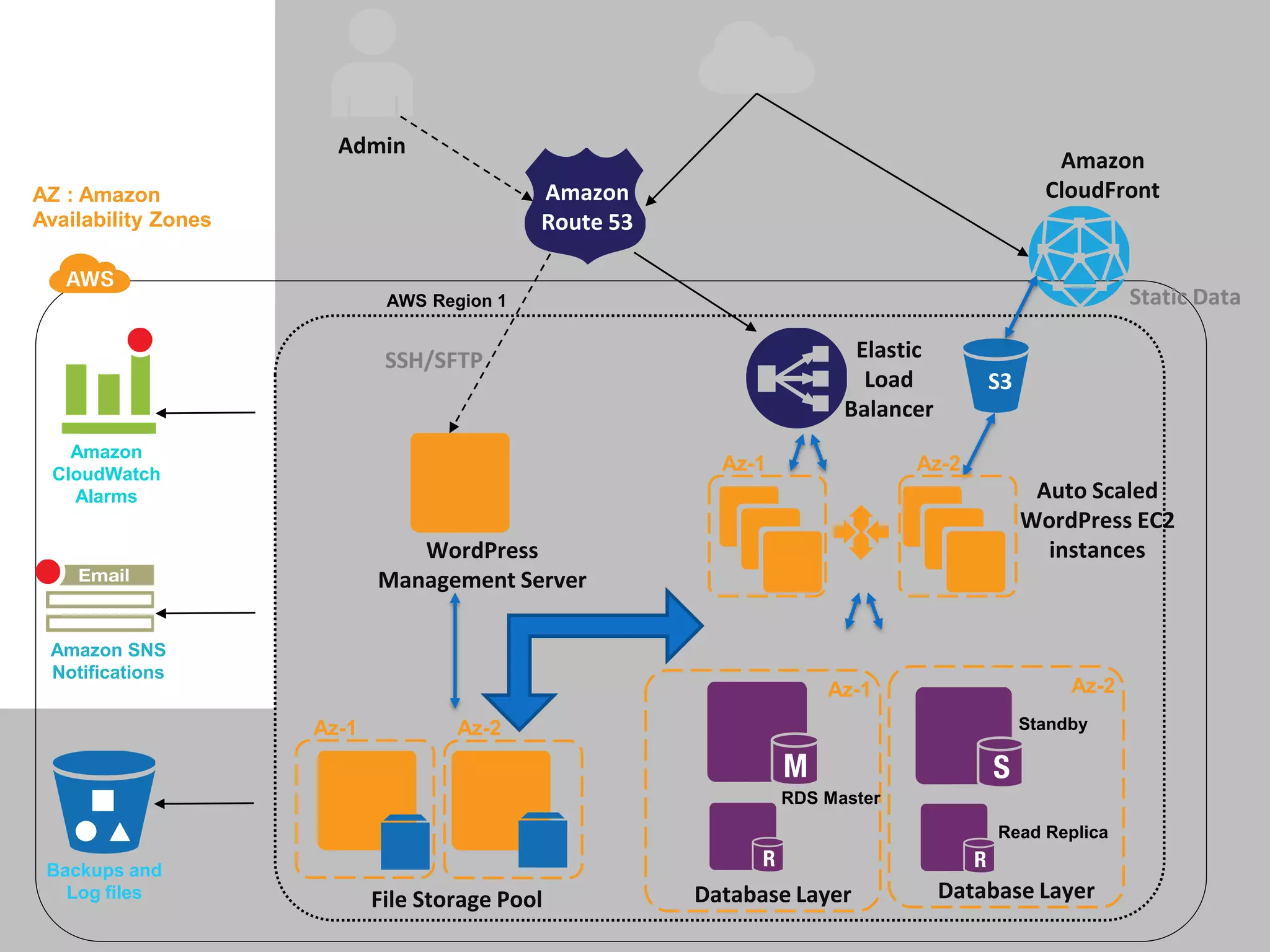

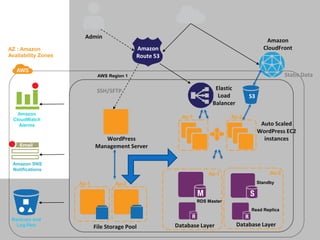

- 33. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

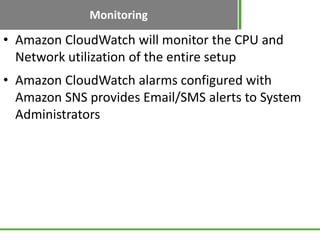

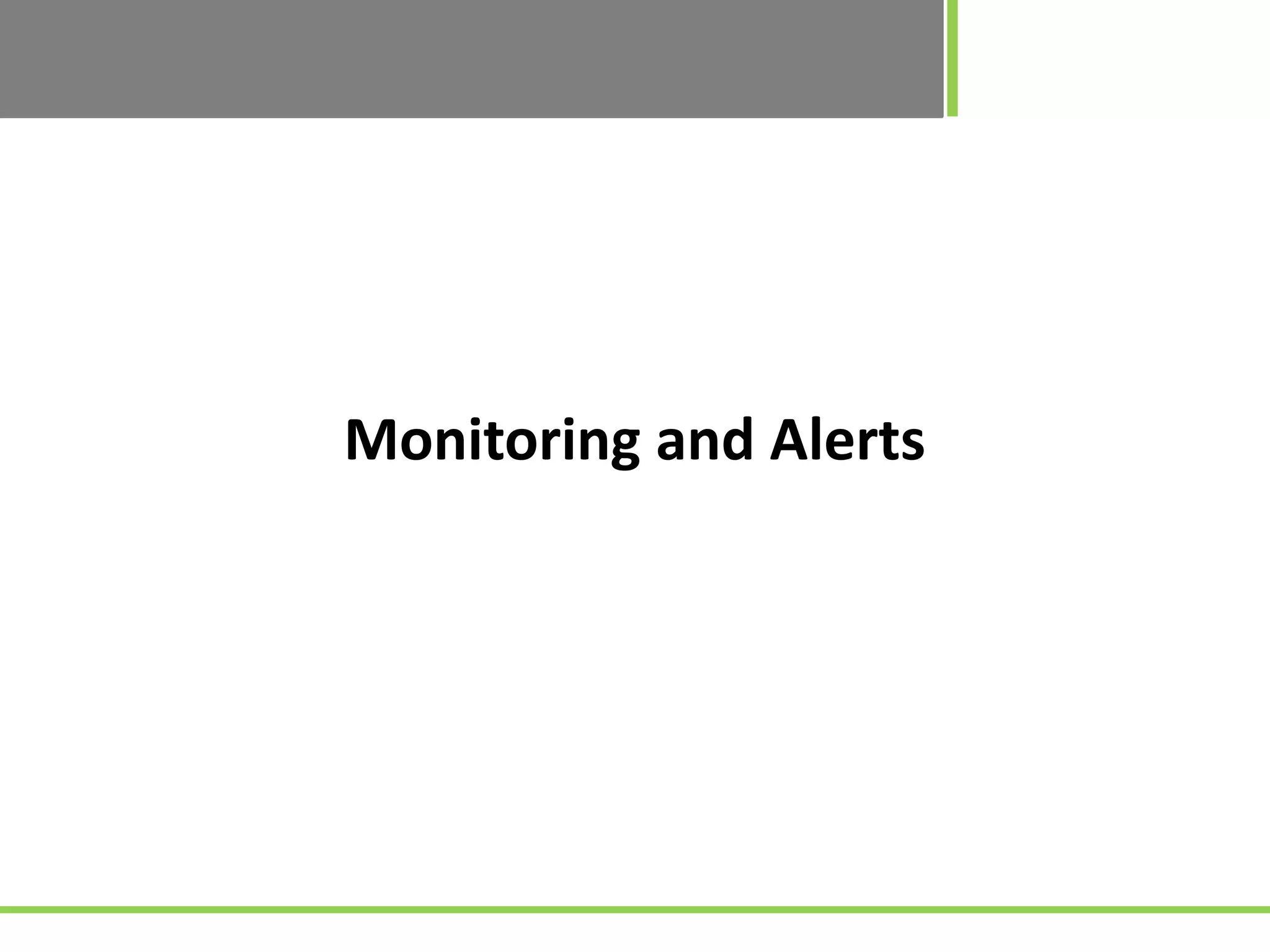

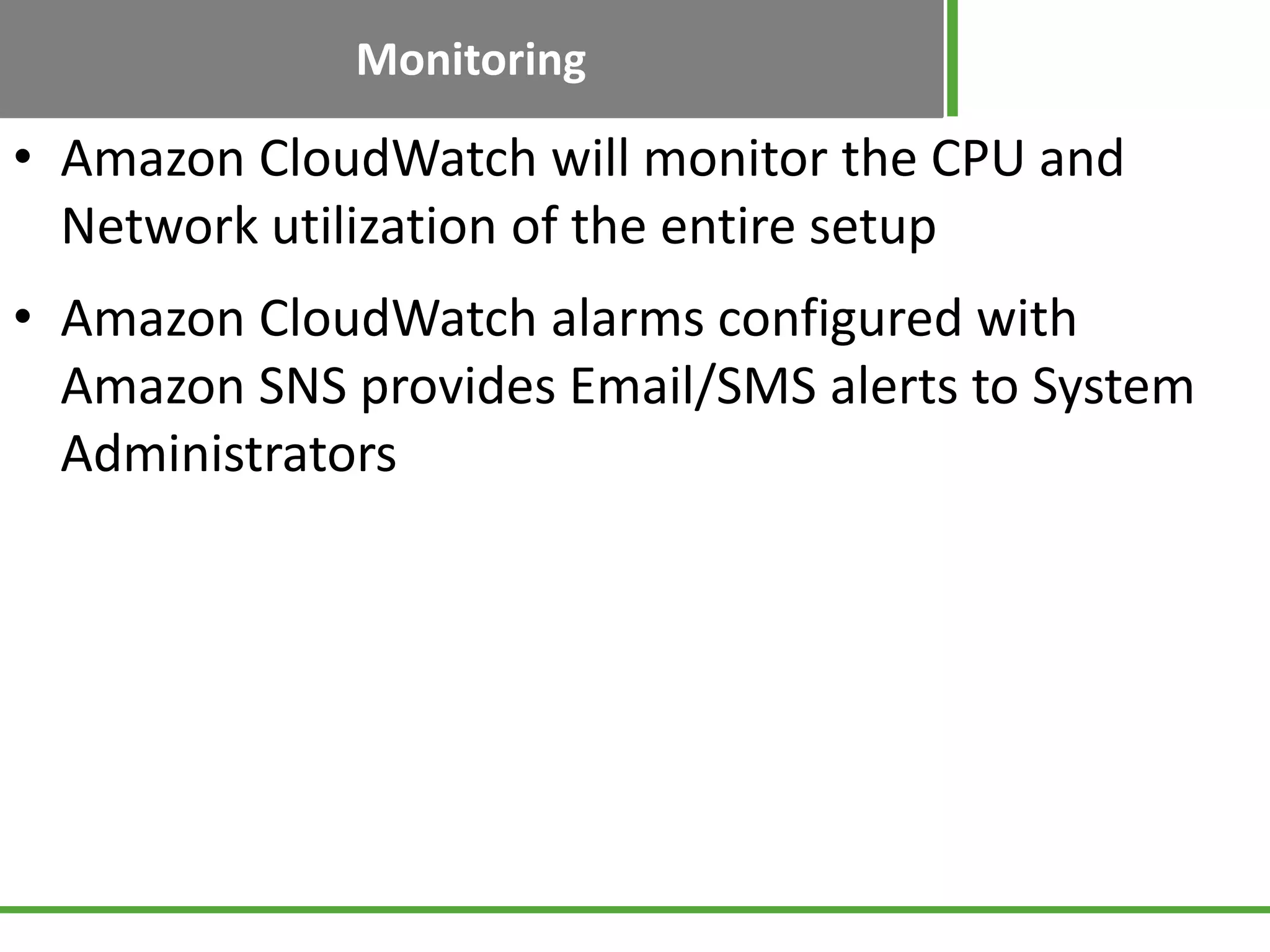

- 34. Monitoring • Amazon CloudWatchwill monitor the CPU and Network utilization of the entire setup • Amazon CloudWatch alarms configured with Amazon SNS provides Email/SMS alerts to System Administrators
- 35.

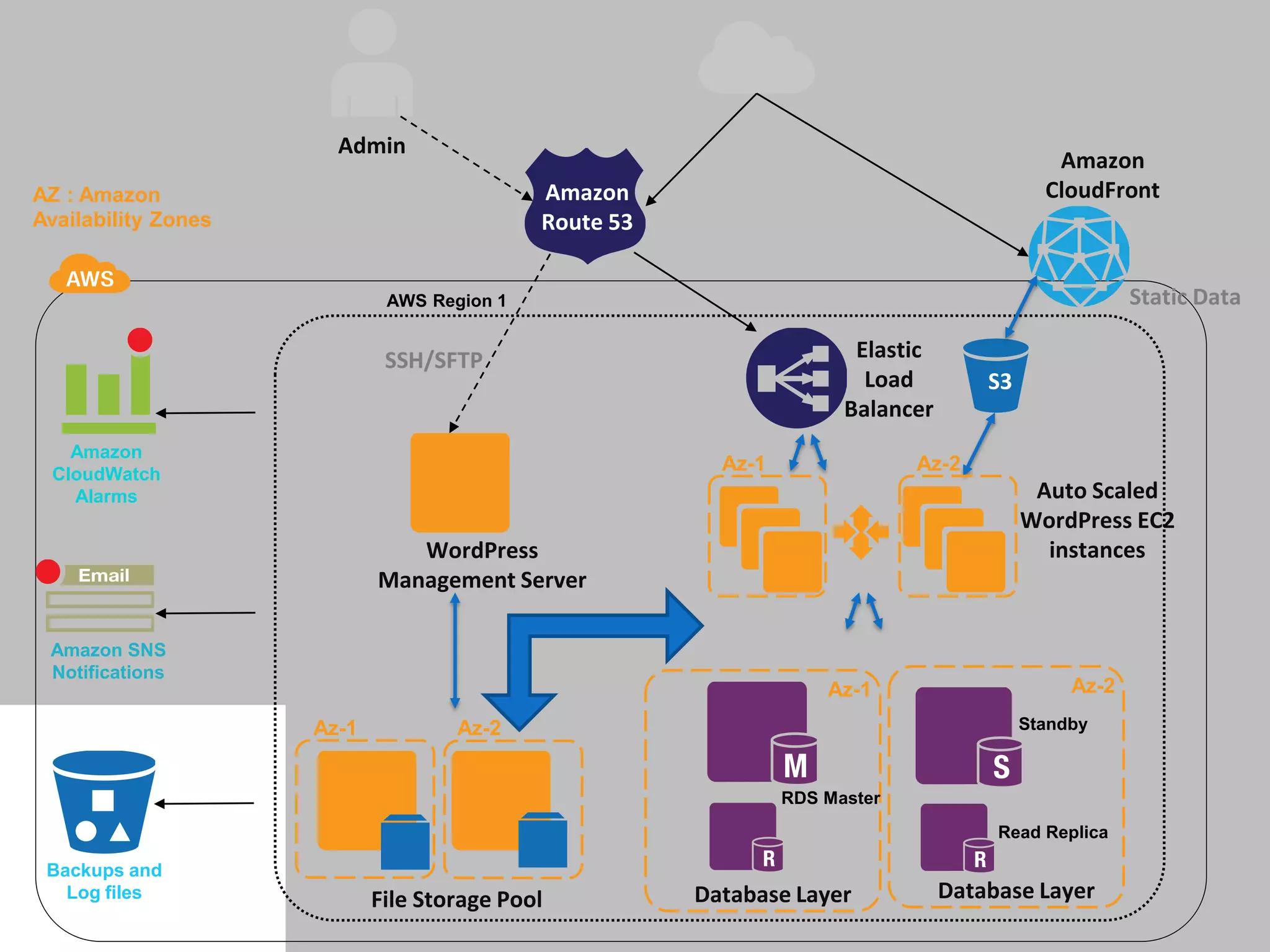

- 36. Admin Amazon AZ : Amazon Amazon CloudFront Availability Zones Route 53 AWS Region 1 Static Data SSH/SFTP Elastic Load S3 Balancer Amazon CloudWatch Az-1 Az-2 Alarms Auto Scaled WordPress EC2 WordPress instances Management Server Amazon SNS Notifications Az-1 Az-2 Az-1 Az-2 Standby RDS Master Read Replica Backups and Log files File Storage Pool Database Layer Database Layer

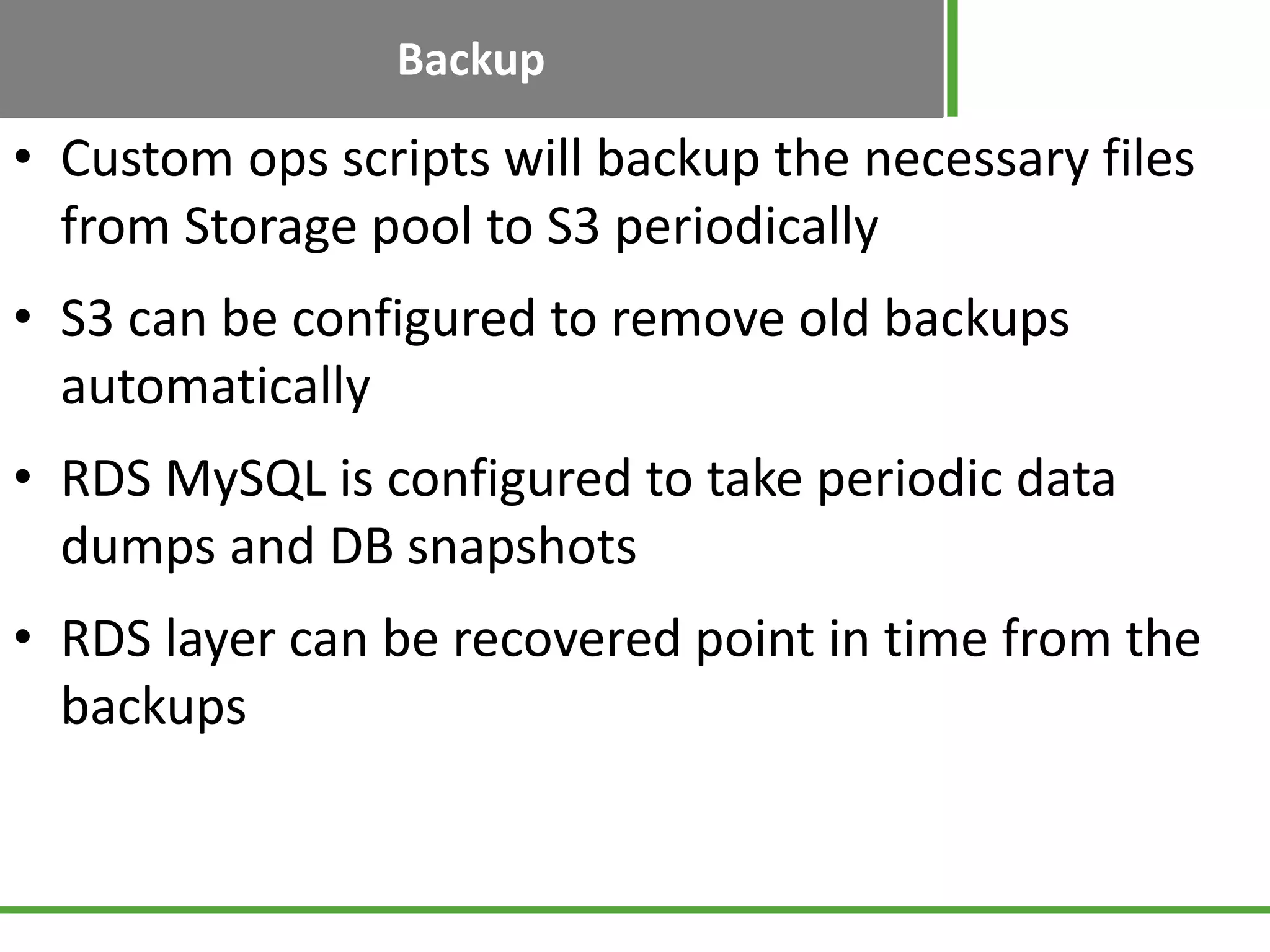

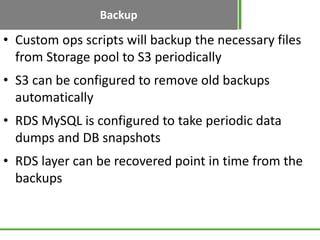

- 37. Backup • Custom opsscripts will backup the necessary files from Storage pool to S3 periodically • S3 can be configured to remove old backups automatically • RDS MySQL is configured to take periodic data dumps and DB snapshots • RDS layer can be recovered point in time from the backups

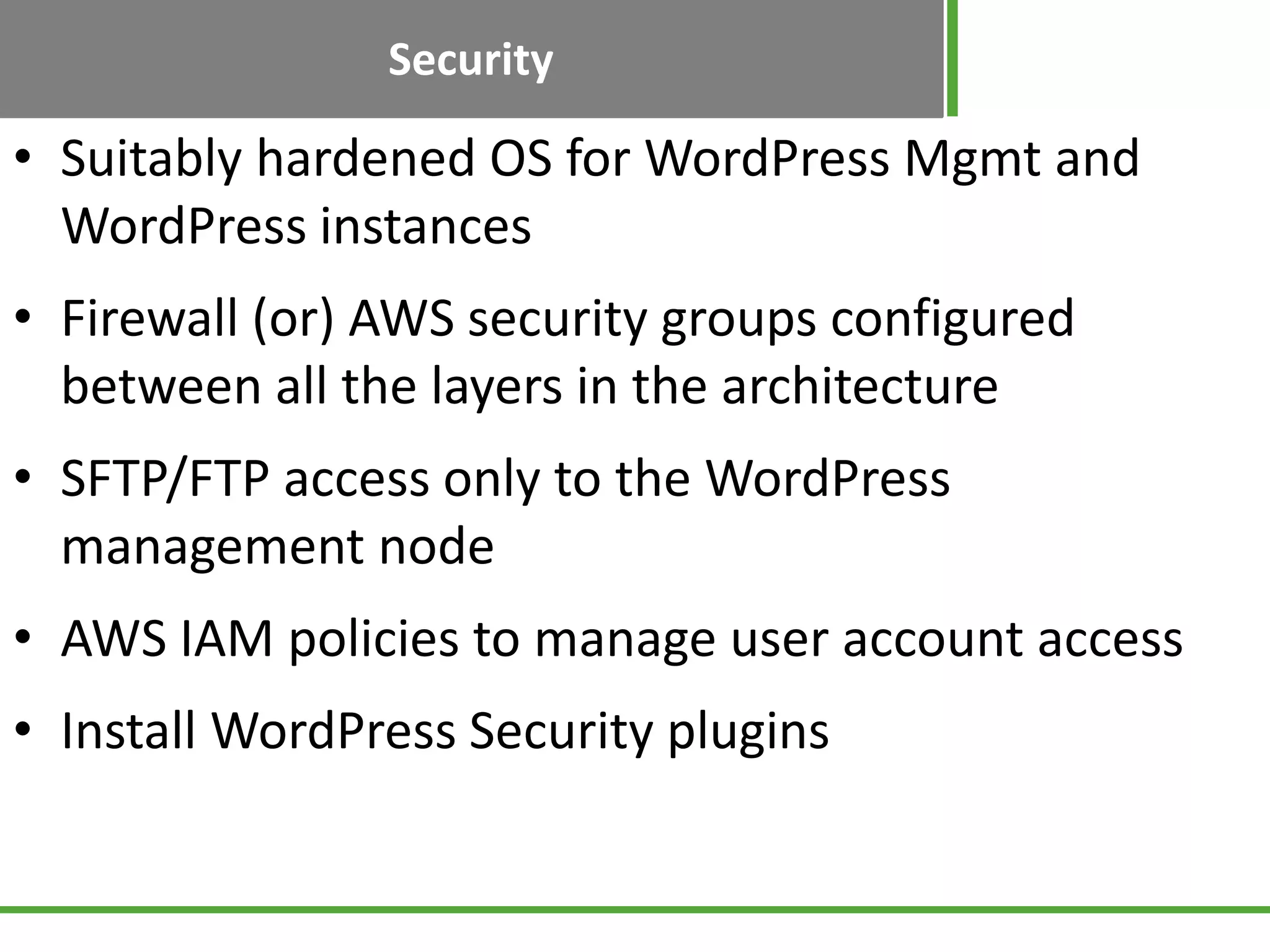

- 38. Security • Suitably hardenedOS for WordPress Mgmt and WordPress instances • Firewall (or) AWS security groups configured between all the layers in the architecture • SFTP/FTP access only to the WordPress management node • AWS IAM policies to manage user account access • Install WordPress Security plugins

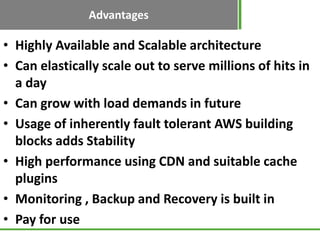

- 39. Advantages • Highly Availableand Scalable architecture • Can elastically scale out to serve millions of hits in a day • Can grow with load demands in future • Usage of inherently fault tolerant AWS building blocks adds Stability • High performance using CDN and suitable cache plugins • Monitoring , Backup and Recovery is built in • Pay for use

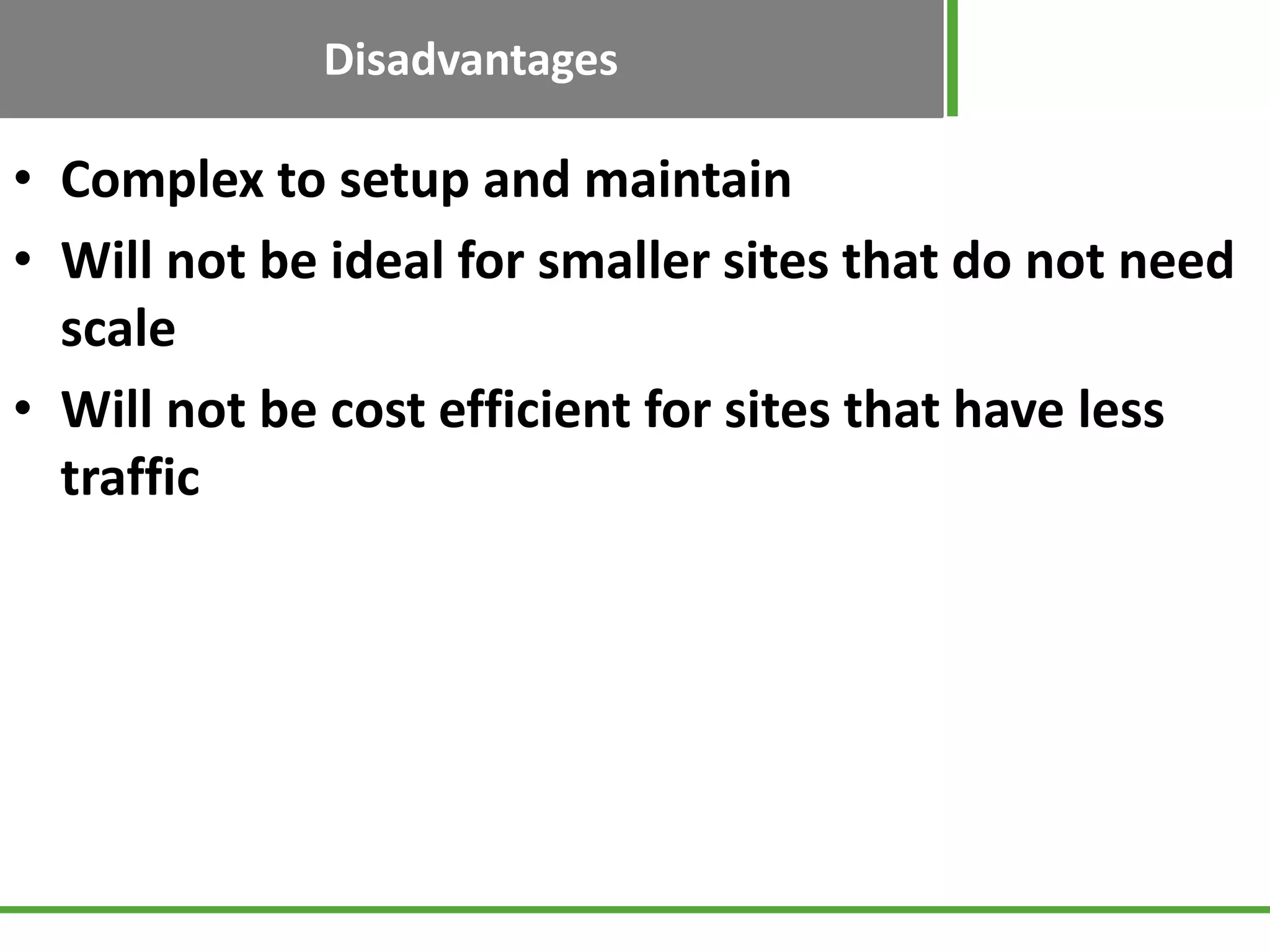

- 40. Disadvantages • Complex tosetup and maintain • Will not be ideal for smaller sites that do not need scale • Will not be cost efficient for sites that have less traffic

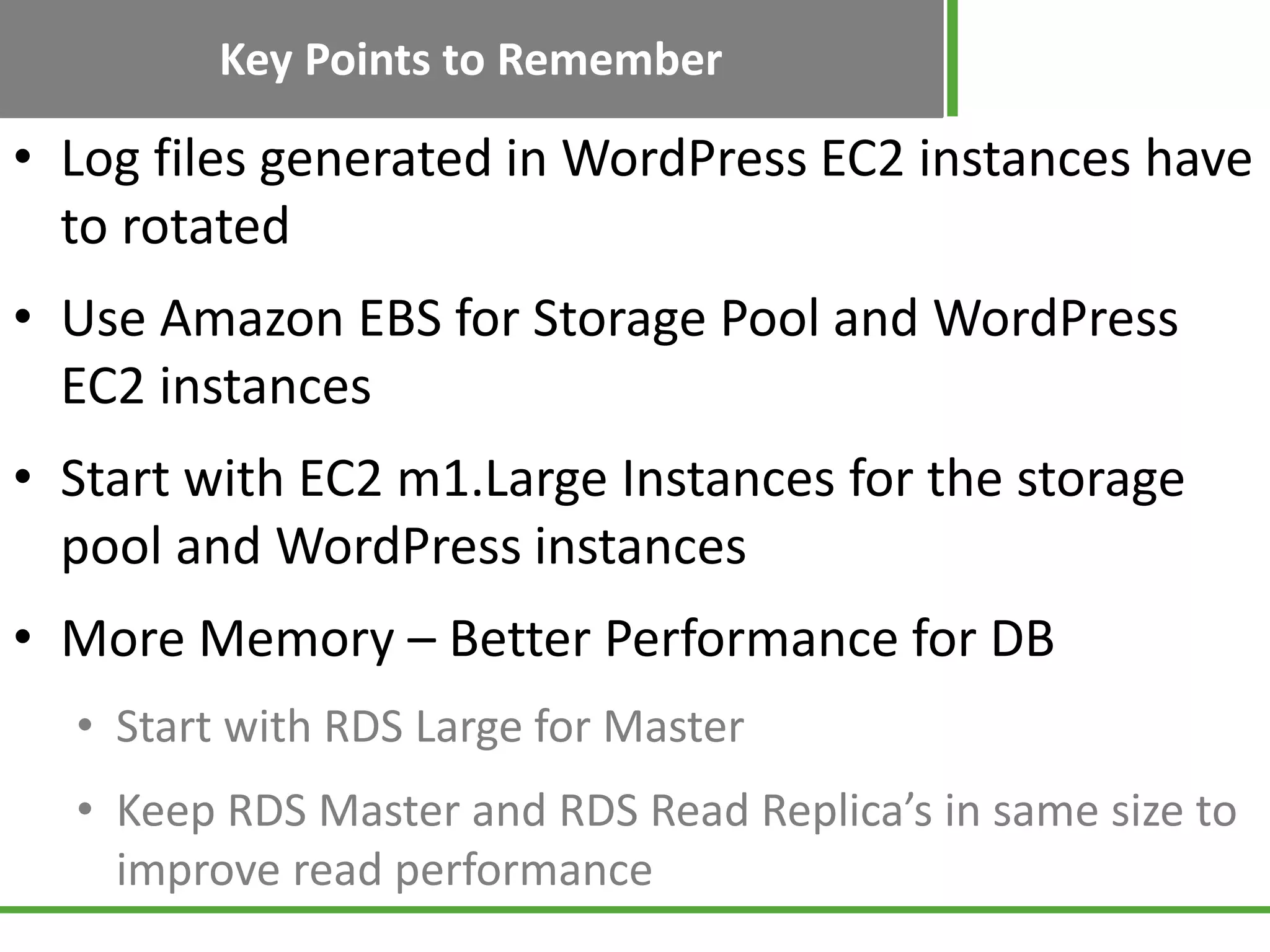

- 41. Key Points toRemember • Log files generated in WordPress EC2 instances have to rotated • Use Amazon EBS for Storage Pool and WordPress EC2 instances • Start with EC2 m1.Large Instances for the storage pool and WordPress instances • More Memory – Better Performance for DB • Start with RDS Large for Master • Keep RDS Master and RDS Read Replica’s in same size to improve read performance

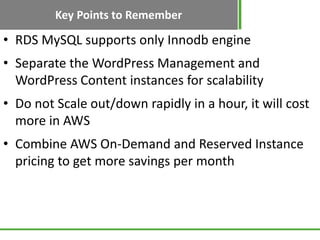

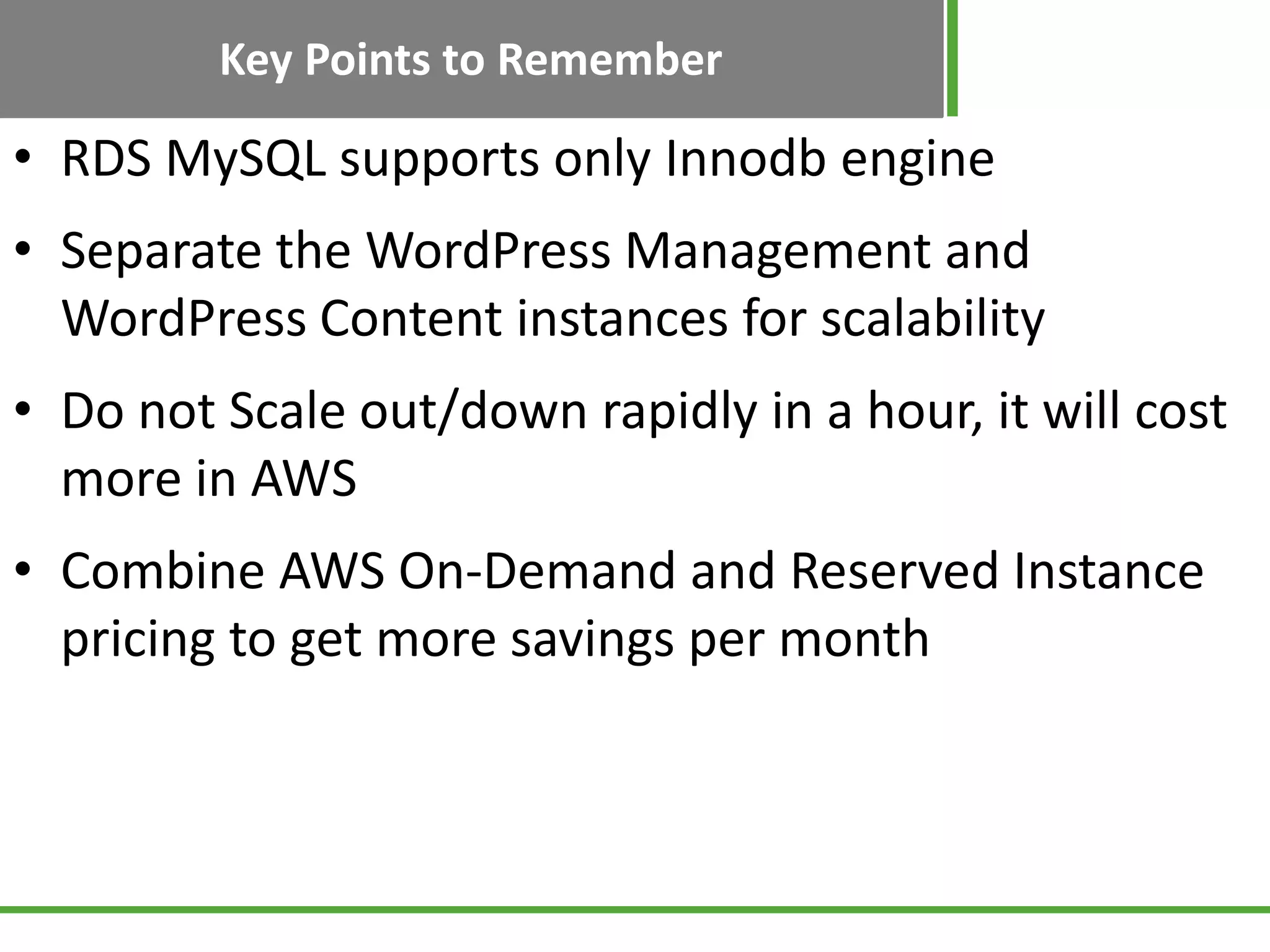

- 42. Key Points toRemember • RDS MySQL supports only Innodb engine • Separate the WordPress Management and WordPress Content instances for scalability • Do not Scale out/down rapidly in a hour, it will cost more in AWS • Combine AWS On-Demand and Reserved Instance pricing to get more savings per month

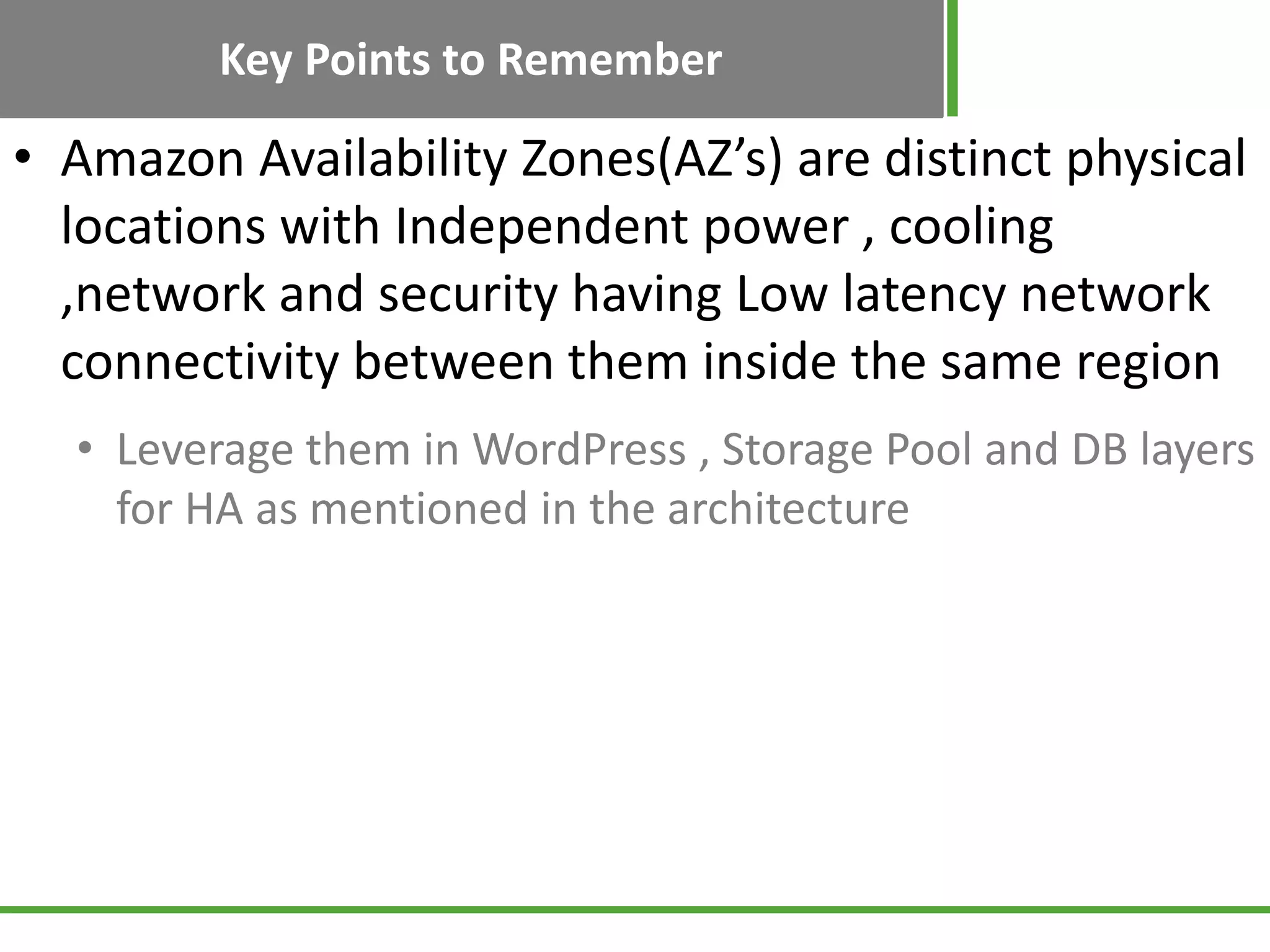

- 43. Key Points toRemember • Amazon Availability Zones(AZ’s) are distinct physical locations with Independent power , cooling ,network and security having Low latency network connectivity between them inside the same region • Leverage them in WordPress , Storage Pool and DB layers for HA as mentioned in the architecture
- 44. How do Isetup Scalable WordPress architecture on AWS?
- 45. Leave it tothe experts , we will handle this Cloud Architecture Consulting Cloud Application Development Cloud Migration & Implementation Cloud Adoption Strategy “Let's get the job done”

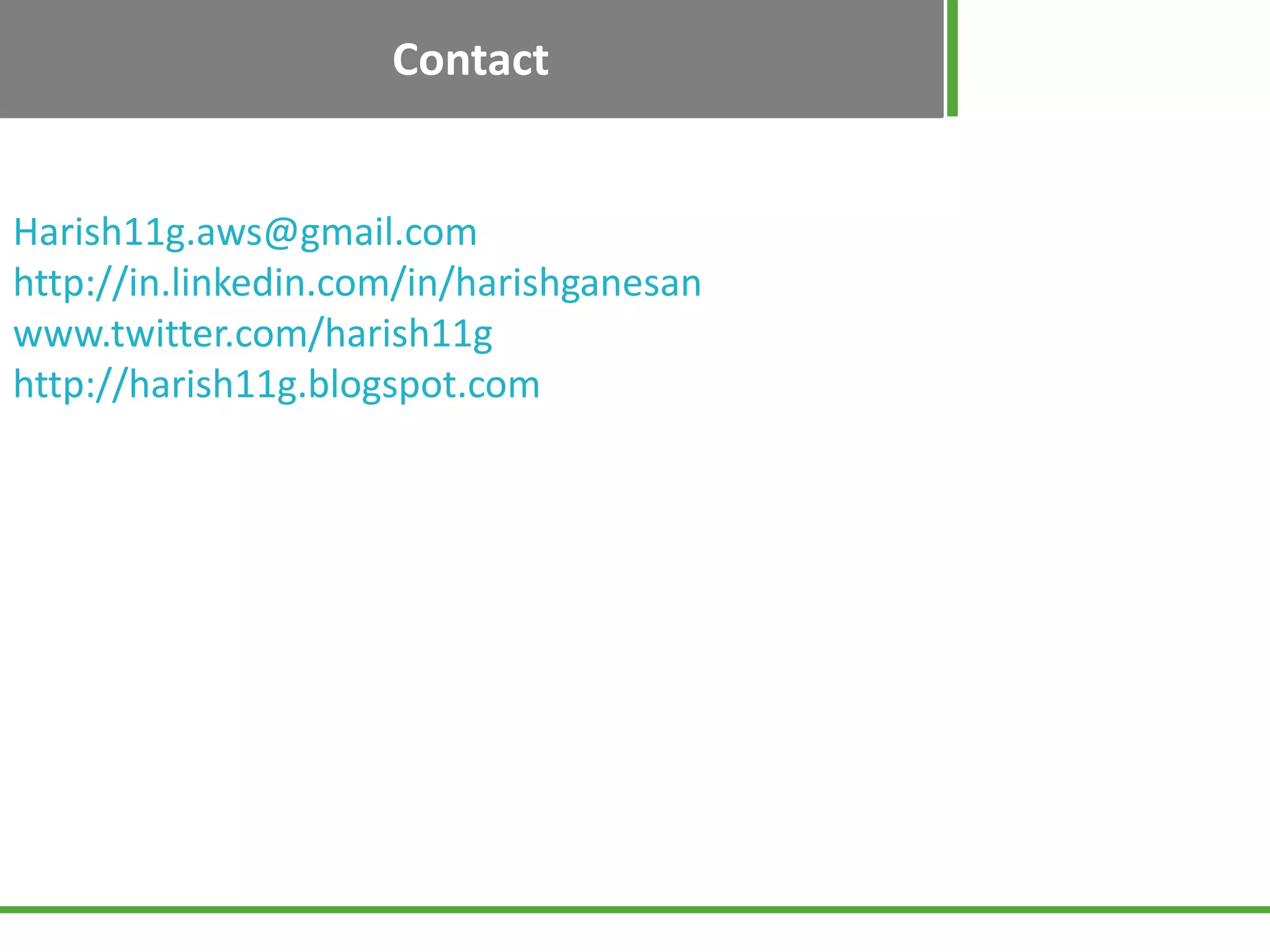

- 46.
